System type Isolators
Devices Frequency converters
Power supplies
Relay modules
Repeaters
Signal converters
Solenoid drivers
Surge protectors
Switch amplifiers
Trip amplifiers
Features Intrinsically safe
Fixings DIN rail mounted
Min. operating temperature (deg. C) -20
Max. operating temperature (deg. C) 60

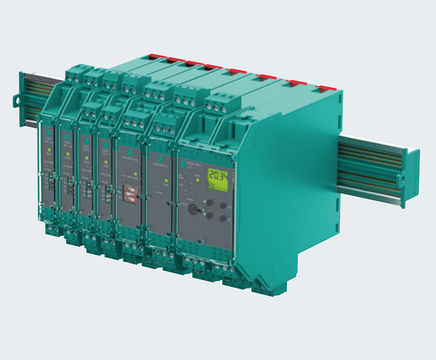

K-System isolators guarantee a reliable and economical signal transmission between field devices and the control system.

The flexible, demand-oriented possibilities of installation - from the single module to the system solution for the building of a large scale plant - characterise the K-System.

For intrinsic safety applications, the control and field circuits are galvanically isolated from one another.

For non-IS applications, the K-System provides cost-optimised versions without ex-protection.

Features

  • Modular housing with removable screw terminals
  • Appropriate to conductor profiles up to 2.5 mm/14 AWG
  • Voltage supply and collective fault message via power rail
  • Flame resistant according to UL94 V-0
  • Width of standard housing from 12.5 up to 40 mm
  • Location independent vertical or horizontal mounting, since no ventilation slots are necessary


K-System isolators guarantee a reliable and economical signal transmission between field devices and the control system.

The flexible, demand-oriented possibilities of installation - from the single module to the system solution for the building of a large scale plant - characterise the K-System.

For intrinsic safety applications, the control and field circuits are galvanically isolated from one another.

For non-IS applications, the K-System provides cost-optimised versions without ex-protection.

Features

  • Modular housing with removable screw terminals
  • Appropriate to conductor profiles up to 2.5 mm/14 AWG
  • Voltage supply and collective fault message via power rail
  • Flame resistant according to UL94 V-0
  • Width of standard housing from 12.5 up to 40 mm
  • Location independent vertical or horizontal mounting, since no ventilation slots are necessary
