710 Style 680 Hastelloy® AODD pumps
710 Style Hastelloy® pumps are used throughout industry to handle acids, adhesives, cosmetics, ceramics, petrochemicals, paper stock, solvents and solids in suspension. Food stuffs and dairy products can also be used. Max flow rate: 680 l/min Pump inlet/outlet size: 3" Diaphragm diameter: 14" 710 Style pumps are part of Flotronics F Series of
710 Style Hastelloy® pumps are used throughout industry to handle acids, adhesives, cosmetics, ceramics, petrochemicals, paper stock, solvents and solids in suspension. Food stuffs and dairy products can also be used.
710 Style pumps are part of Flotronics F Series of air-operated double diaphragm pumps. These pumps are suitable for both simple transfer and continuous duty process applications using PTFE faced multi-million cycle diaphragms as standard.
Stainless steel versions are also available.

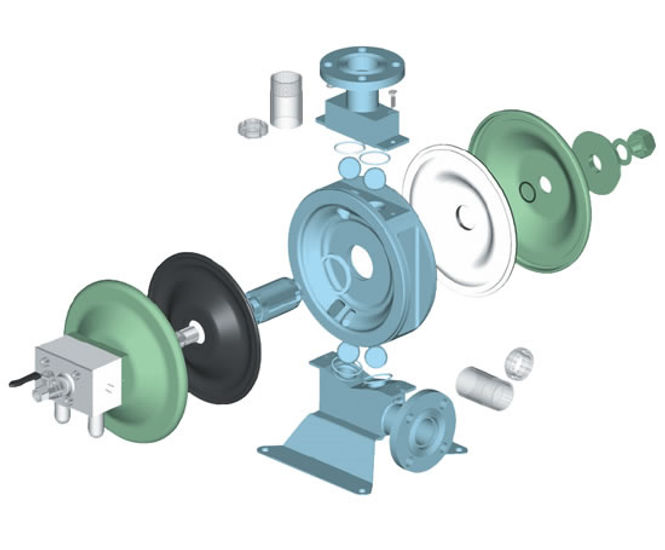

F Series pumps use Flotronics one-nut design. Each pump is held together by one nut on the opposite side of the pump to the external air valve.
This design allows in-line diaphragm replacement to be accomplished in less than 15 minutes, with a complete stripdown and rebuild possible in less than 20 minutes.
