Material GRP
Maximum salt capacity 140 tonnes
Brine output 2400 l/h, 3700 l/h, 4900 l/h, 6800 l/h
Unit dimensions 2400, 3050, 3500, 4100mm (internal diameter); 600, 700, 800mm (dome height)

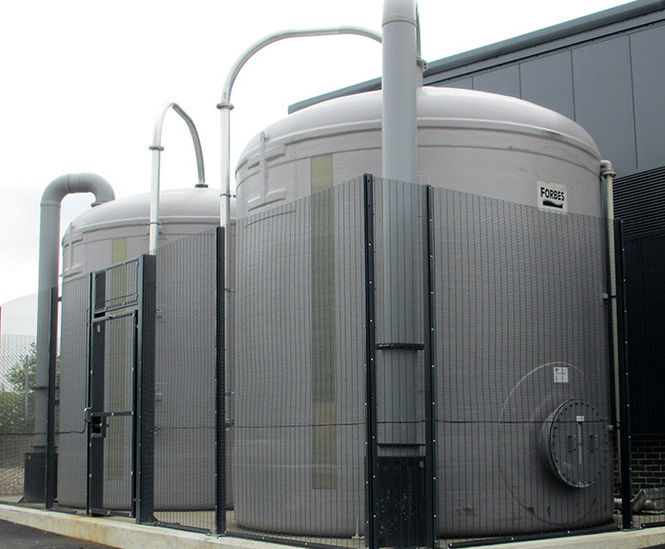

Salt saturators are made from corrosion-resistant GRP and provide a constant, controllable supply of saturated brine solution.

They contain layers of graded gravel under a bed of salt, which is covered by a constant head of water. The water dissolves the salt and, filtering through the gravel, emerges as clean, saturated brine.

Salt saturators are supplied as a package, including storage tank, lifting lugs, top and side access manways, visual level indication strip, air vent, overflow, PDV salt inlet, and water inlet with float-controlled valve.

All steel parts, including nuts, bolt and washers, are protected from corrosion by hot dip galvanising. The water inlet control float valve is housed within a protective chamber to avoid obstruction by salt.


Salt saturators are made from corrosion-resistant GRP and provide a constant, controllable supply of saturated brine solution.

They contain layers of graded gravel under a bed of salt, which is covered by a constant head of water. The water dissolves the salt and, filtering through the gravel, emerges as clean, saturated brine.

Salt saturators are supplied as a package, including storage tank, lifting lugs, top and side access manways, visual level indication strip, air vent, overflow, PDV salt inlet, and water inlet with float-controlled valve.

All steel parts, including nuts, bolt and washers, are protected from corrosion by hot dip galvanising. The water inlet control float valve is housed within a protective chamber to avoid obstruction by salt.
