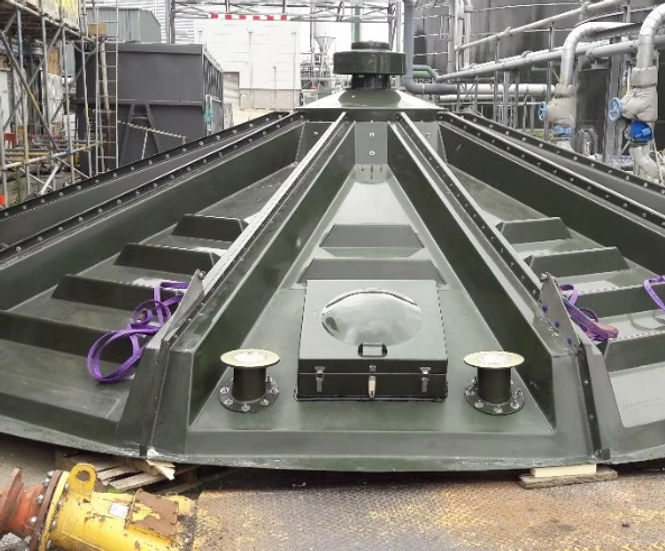

Conical GRP Tank Covers are made from glass reinforced plastic and designed for odour containment on tanks. Diameters up to 16.22m are standard. Designed to WIMES 8.05 and BS EN-1991-1-1:2002 standards. Segmented construction allows easy handling and assembly. Colour options include any RAL or BS4800 shade.

  • GRP tank cover system for odour control on tanks

  • Segmented panels allow fast installation and efficient transport stacking

  • Access manways are hinged, lockable, and include removable stainless steel safety grilles

  • Includes mixer and aerator hatches, flanged upstands for odour extraction, and air inlets with bird or insect mesh

  • Structural design verified using FEA software

  • Colour choice from RAL or BS4800 ranges

Applications

  • Odour containment for tanks in water and wastewater treatment facilities

Dimensions

Maximum diameter 16.22m

Materials

Made from glass reinforced plastic (GRP)

Colours

Any RAL or BS4800 colour

Options and variations

Hinged and lockable access manways with removable stainless steel safety grille

Mixer and aerator hatches

Flanged upstands for odour extraction instruments

Air inlets with bird or insect mesh

Performance

Standard duty 0.75kN/m2 to BS EN-1991-1-1:2002

Product accreditations

Designed to WIMES 8.05

Complies with BS EN-1991-1-1:2002
