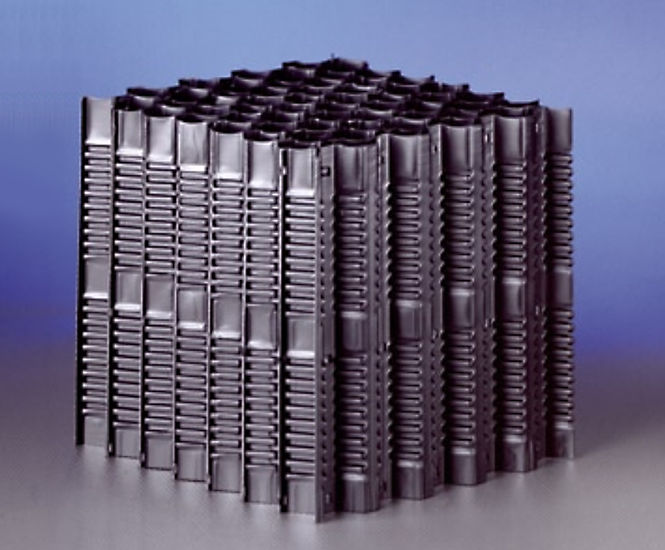

BIOdek® KVP 623 vertical flow fill is used in wastewater treatment applications. It is suitable for strongly polluted water in trickling filters, carbonaceous oxidation in submerged biological treatment, and for biogas desulphurisation in mass transfer applications.

It is reliable, limiting the accumulation of solids and thick biofilms, and provides optimum solids discharge and low pressure drop due to vertical channels and open interfaces within the fill media.

BIOdek® has a self-supporting structure with a high load-bearing capacity with variable sheet thicknesses.

BIOdek® KVP 623 vertical flow fill is made of polypropylene. It is easy to clean, and is resistant to most chemicals, bacteria and UV, so provides a long service life.

Technical data:

  • Specific surface area: 125m2/m3
  • Corrugation height: 23mm
  • Max length: 2400mm
  • Max width: 600mm
  • Height: 600mm
  • Max application temp: 80°C
  • Void ratio: 97%
