Media Air
Chemicals / process liquids
Process gases
Valve type Pressure relief valves
Construction Stainless steel
Max. pressure (bar) 40
Min. temperature (deg. C) -196
Max. temperature (deg. C) 65
Min. connection size (mm) 15
Max. connection size (mm) 15

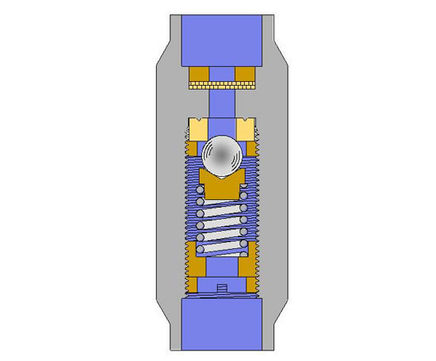

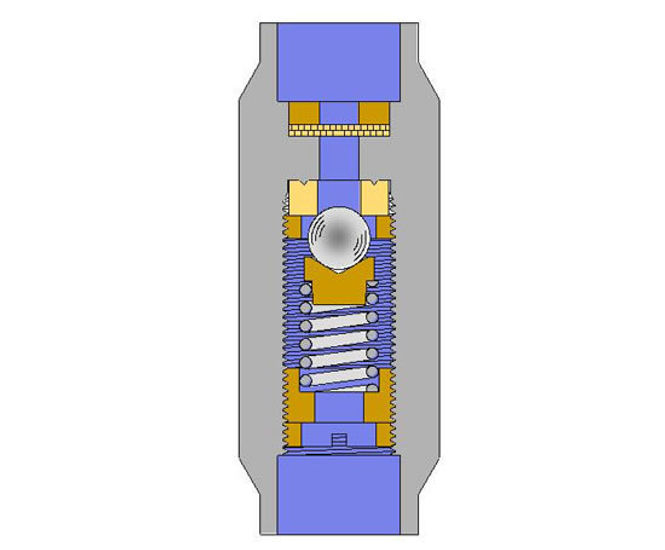

The stainless steel filter relief valve Series 2012 is used for applications in the cryogenics industry.

All valves are degreased to LOX service as standard and immediately bagged ready for despatch. All valves are issued with test certification and a certificate of conformity. DIN 50049 3.1.B. certification is available on request.

It is easy to install with optional end connections including socket weld and screwed.

The specifier has total flexibility over material specification, for example all stainless steel trim and non-wetted parts are available.

Features
• Fully Rated to -196°C for Oxygen service.
• Pressure ratings up to 40 bar.
• Body test pressure: 60 bar.


The stainless steel filter relief valve Series 2012 is used for applications in the cryogenics industry.

All valves are degreased to LOX service as standard and immediately bagged ready for despatch. All valves are issued with test certification and a certificate of conformity. DIN 50049 3.1.B. certification is available on request.

It is easy to install with optional end connections including socket weld and screwed.

The specifier has total flexibility over material specification, for example all stainless steel trim and non-wetted parts are available.

Features
• Fully Rated to -196°C for Oxygen service.
• Pressure ratings up to 40 bar.
• Body test pressure: 60 bar.
