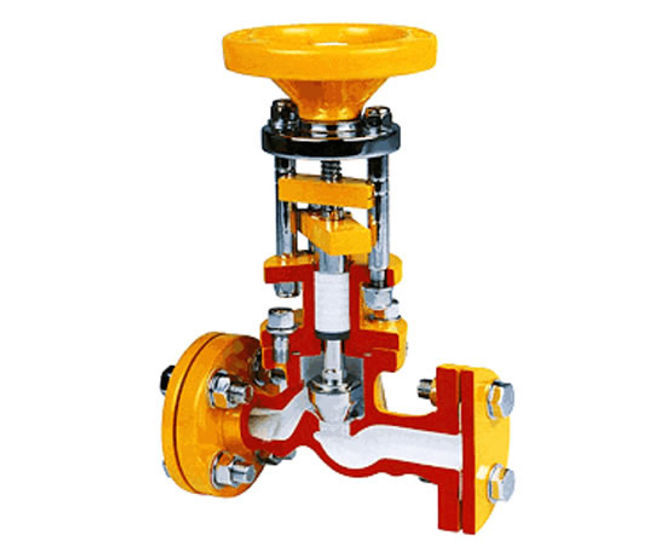

Shaw packed gland valves
The Shaw packed gland valve is suitable for use with hazardous chemicals and chlorine. The stem is a one-piece, non-rotating design that substantially reduces wear of the gland packing. The depth of the stuffing box is more than twice the travel of the valve from fully open to fully closed. The standard gland packing is PTFE but graphite is used
Click for full image
Shaw packed gland valves
Product details
Media
Chemicals
Construction
Thermoplastics
The Shaw packed gland valve is suitable for use with hazardous chemicals and chlorine.
The stem is a one-piece, non-rotating design that substantially reduces wear of the gland packing. The depth of the stuffing box is more than twice the travel of the valve from fully open to fully closed. The standard gland packing is PTFE but graphite is used for higher temperatures.
Approvals and compliance: • BSI registered firm (FM 308) for BS EN ISO 9001. • Stoomwezen. • Euro-Chlor Homologation 97/02. • Euro-Chlor Gest 90/150 4th Edition 1998. • Chlorine Institute Pamphlet 6 Edition 14. • ASME B16.34. • API 600. • BS 1873.
