Suitability Factories
Installation Suspended
Integrated equipment Filters

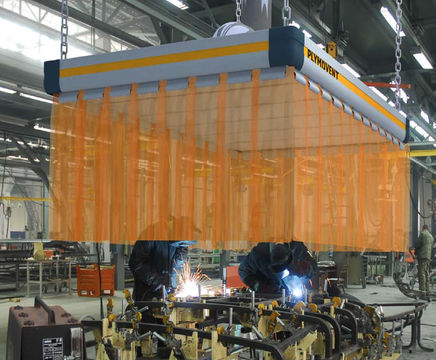

The FlexHood extraction hood is modular and flexible, providing efficient fume extraction, and easy installation and maintenance. It has been developed to cover a specific welding area, such as a robotic installation. When source extraction is impossible - for example due to the fact that welding robots move on a rail system - extraction hoods are an effective way to extract welding fumes near the actual process. It reduces the amount of fumes, small particles, fine dust, but also mist and aerosols in the workshop atmosphere.

They are tailored to fit work areas from 1.5-8m2 with a maximum width of 2m and a maximum length of 4m.

Traditional extraction hoods are also often bulky and difficult to transport and manoeuvre inside a factory. FlexHood comes in easy-to-handle modular parts and can easily be put together on site.

FlexHood is designed to protect welders, personnel in working areas, working equipment and the facility itself. Deflection plates in the hood control the airflow and reduce the risk of sparks reaching the filter.

Key applications

  • Workplaces where source extraction is impossible
  • Welding areas from 1.5-30m2
  • Robotic installations

Features

  • Modular concept
  • Innovative design
  • Efficient fume extraction
  • Easy to install and maintain
  • Safe, thanks to its integrated spark arrester


The FlexHood extraction hood is modular and flexible, providing efficient fume extraction, and easy installation and maintenance. It has been developed to cover a specific welding area, such as a robotic installation. When source extraction is impossible - for example due to the fact that welding robots move on a rail system - extraction hoods are an effective way to extract welding fumes near the actual process. It reduces the amount of fumes, small particles, fine dust, but also mist and aerosols in the workshop atmosphere.

They are tailored to fit work areas from 1.5-8m2 with a maximum width of 2m and a maximum length of 4m.

Traditional extraction hoods are also often bulky and difficult to transport and manoeuvre inside a factory. FlexHood comes in easy-to-handle modular parts and can easily be put together on site.

FlexHood is designed to protect welders, personnel in working areas, working equipment and the facility itself. Deflection plates in the hood control the airflow and reduce the risk of sparks reaching the filter.

Key applications

  • Workplaces where source extraction is impossible
  • Welding areas from 1.5-30m2
  • Robotic installations

Features

  • Modular concept
  • Innovative design
  • Efficient fume extraction
  • Easy to install and maintain
  • Safe, thanks to its integrated spark arrester
