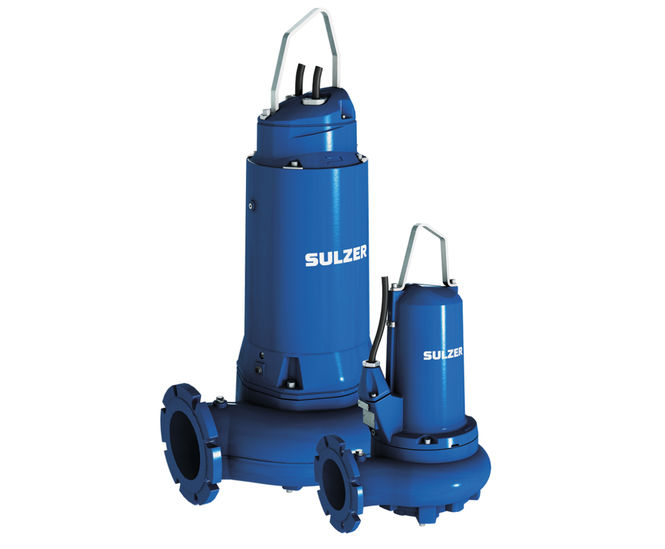

The ABS XFP for standard pumping stations is robust, reliable and submersible with a premium efficiency motor. It is ideal for pumping wastewater and sewage from buildings and sites in private, commercial, industrial and municipal areas in accordance with EN 12050-1.

Features

  • Premium-efficiency IE3, three-phase squirrel-cage motor.
  • Water-pressure-tight, encapsulated, fully flood-proof motor.
  • Compact, robust, modular construction.
  • Continuously rated motor in submerged and non-submerged applications.
  • Double mechanical seals.
  • All seals are independent of rotation direction and resistant to temperature shock.
  • Anti-wicking cable plug.
  • High-efficiency hydraulic design with a Contrablock impeller.
  • Free solids passage of 75mm.
  • Lubricated-for-life bearings with a calculated life-time of at least 50,000 hours.
  • Stainless steel shaft. Designed with high safety factor to prevent fatigue fracture.
  • Temperature monitoring by thermal sensors (140°C) in the stator windings.
  • Seal monitoring in the seal chamber signals an inspection alert if there is leakage.
  • Smooth outer design to reduce rag build-up.
  • Stainless steel lifting hoop.
  • Maximum submergence depth of 20m.
  • Explosion-proof as standard, in accordance with international standards EExd II BT4 and ATEX.
