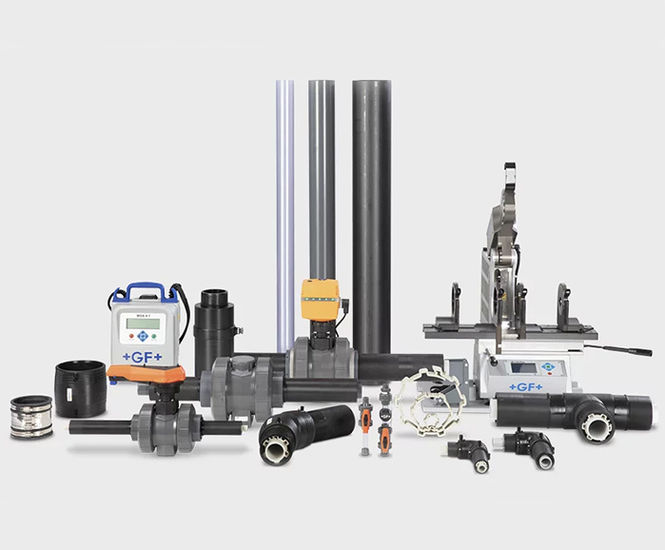

CONTAIN-It Plus is a double containment plastic piping system for minimising personal and environmental risks within industrial applications.

Regulations already in effect, or governmental ordinances, can dictate double containment systems. Wherever environmentally-hazardous media need to be conveyed, the accident risk can be practically eliminated with the use of double piping and leak detection.

The inner pipe is available in PVC-C, PVC-U, PVDF, PP and PE. The outer pipe is PE or PVC-U. Dimensions range from 20mm inner pipe / 50mm outer pipe, up to 225mm inner / 315mm outer.

The system provides separate joints of inner and outer pipe, guaranteeing visible control of each fusion or cement joint according to George Fischer's recommendations and the DVS fusion regulations.

The inner pipe is pressure-tested before connecting the outer pipe in order to detect any leakage from the inner pipe immediately. The double containment piping system starts and ends with termination fittings, allowing splitting the piping system into different leak containment sections.

  • Double containment piping system for hazardous fluid transport

  • Inner pipe resists chemicals, outer pipe adds containment

  • Corrosion-free and longer-lasting than metal alternatives

  • Includes fittings, valves, actuators, and leak detection

  • Customised products and prefabricated sections available

  • Digital CAD libraries and technical documentation support design

  • On-site training and planning support available

Applications

  • Effluent treatment plants with contents hazardous to water

  • Effluent plants in water protection areas

  • Battery manufacturing

  • Chemical processing

  • Semiconductor manufacture

  • PCB production

  • Power plants

  • Metalworking and finishing

  • Paper and cellulose processing

  • Dumping ground drainage

  • Life sciences

Key benefits

Complete system range

  • Simple design for fast and easy assembly

  • Available in a number of plastics (PP, PE, PVDF, PVC-U, PVC-C)

  • Includes a range of valves and automation

  • Worldwide service: customising, machine rental pool, training and sales support

Total plastic solution

  • Corrosion-free

  • UV- and weather-resistant

  • Good chemical resistance (choice of material)

  • Good temperature resistance

  • Smooth internal surface

  • Low weight and easy handling

Job safety

  • Personnel and environment protection

  • Suitable for visual inspection and identification

  • Adaptable leak detection system

  • System lifetime warranty

Materials

Chemically resistant plastic

Performance

Corrosion-free

Longer lifespan than metal piping

Technical support

Planning advice, design support, project-specific services, on-site training
