Type EA11

George Fischer's basic electric actuator for the open-close operation of smaller torques. The EA11 consists of a gear, a direct current motor and a base print, as well as equipment for end-stops in its standard version.

Type EA21, EA31 and EA42

Not only excellently equipped but can operate with very high torques. Therefore, these actuators can be used to actuate a wide range of valves.

Type 107

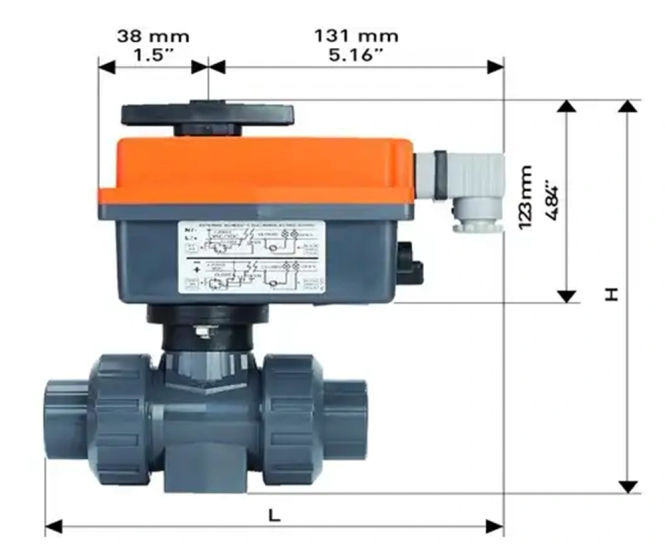

Based on the ball valve Type 546 (d16DN10 to d63DN50) with the electric actuator EA11. Type 107 is designed for automated standard applications with no special demands.

Type 130-135

Based on ball valve type 546 (d16DN10 to d110DN100) and the electric actuator EA21 (DN10-DN50) or EA31 (DN65-DN100). Type range 130-135 is designed as modular upgradable ball valve for applications with special process demands.

Type 185-188

Based on ball valve Type 543 (d16DN10 to d63DN50) and electric actuator EA21. The Type 185-188 range is designed as modular, upgradable three-way ball valves for mixing and diverting applications that have special process requirements.

Type 140

Electrically actuated butterfly valve that is adaptable to a variety of conditions and applications. It is available in PVC-U, PVC-C, ABS, polypropylene and PVDF.

Type 141/142

Electrically actuated butterfly valves that are adaptable to a variety of conditions and applications. They are available in PVC-U, PVC-C, ABS, polypropylene and PVDF. With the optional positioner, this valve type goes from being a simple on/off valve to a precise flow control device that can be integrated into systems controlled by PLCs and other computerised instrumentation.
