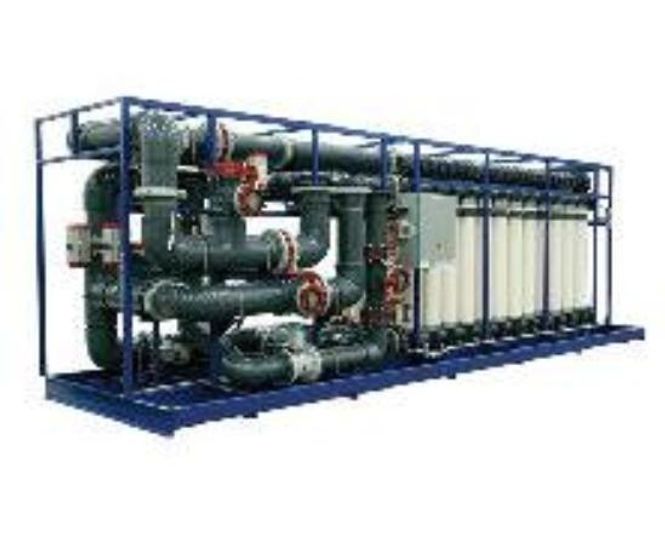

Vantage™ UFI ultrafiltration systems are designed to remove suspended solids and organic impurities from a variety of different water streams.

Each Vantage™ UFI system incorporates a Vantage™ LPU (low pressure ultrafiltration) module. Multibore® fibers are bound together to form a filter module that is encapsulated into an economical low-pressure PVC housing. The distinctive design of the module reduces external piping and pipe supports by integrating the feedwater manifolds into the end cap of each module. Through an annular gap between the shell and distribution pipe, filtrate is collected or backwash is introduced into the module. This results in a nearly constant radial velocity across the module diameter.

Vantage™ LPU modules are manifolded together into racks and combined with pumps and controls to form a Vantage™ UFI system. Vantage™ UFI systems are available in six models – 4, 8, 12, 24, 36, and 48 module racks. Additional configurations provide up to four racks (i.e. 4 x 24 module racks).

Systems can have either Siemens or Allen-Bradley control packages with HMI touch screen interfaces. Other options include manual/automatic backwashing strainers, completely automated backwash and chemical-enhanced backwash capabilities, VFD-controlled feed pumps for ease of operation and energy savings, and completely skidded packages with short lead times.
