GP1 - general-purpose and soil moisture data logger

Product name

Input type

Analogue

Operation

Battery powered

Features

Waterproof

Number of input channels

2 voltage
2 resistance
2 counter

Capacity (readings)

600,000

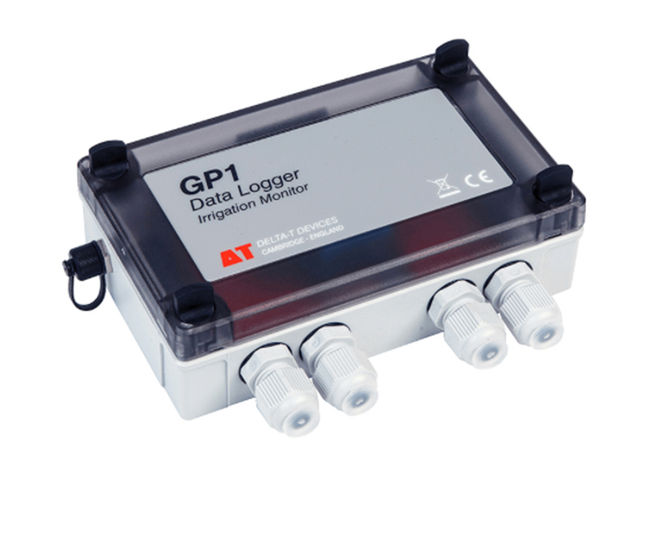

GP1 is a 7-channel, high-accuracy data logger made from a waterproof IP67 enclosure, designed for recording soil moisture, temperature and pulse data. Stores over 600,000 readings and supports direct irrigation control, with free DeltaLINK-Cloud data sharing and PC software for setup and data collection.

7-channel logger for soil moisture, temperature and pulse data
Waterproof IP67 enclosure for outdoor use
Stores over 600,000 readings for long-term monitoring
Direct irrigation control based on sensor data
Battery powered with option for external power
Supports up to 2 soil moisture sensors, 2 temperature probes, 2 pulse counters, and 1 WET Sensor
Optional adapter for bridge sensors like pressure transducers
Free DeltaLINK-Cloud service for online data access

Applications

Soil science research
Plant physiology studies
Agronomy and crop monitoring
Climate research and meteorology
Horticulture and agriculture
Turf management and amenity landscaping

Dimensions

140 x 105 x 45mm

Performance

Enclosure rating: IP67

Operating temperature: -20 to +60°C

Recording rate: 1 second to 24 hours

Battery life: over 130 days for 76,000 readings

Memory: 1 MB FLASH, stores 600,000 readings

Options and variations

Optional GP-PBA-X50 Precision Bridge Adapter for bridge sensors

Supports USB, RS232 or modem communication

Expandable with M8 cabling network for up to 10 units

Installation

Battery-powered with option for external 11–24V supply

Local or remote data collection via laptop or modem

Free online data viewing and sharing service - DeltaLINK Cloud

DeltaLINK-Cloud is a free online data viewing and sharing services for Delta-T Devices data loggers. Connect, upload, then monitor, manage and share your sensor data with speed and ease.
