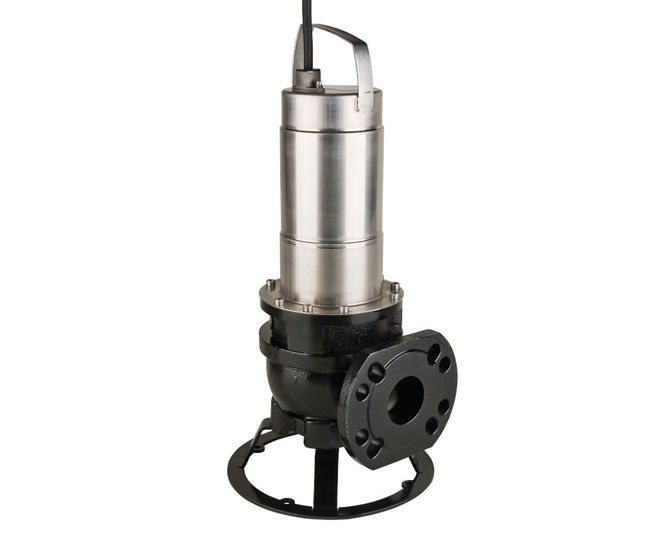

Rexa FIT is a submersible sewage pump with cast iron hydraulics and a stainless steel motor.

It is used for pumping wastewater and sewage, wastewater containing faeces, and sludges up to maximum 8% dry matter (depending on the selected hydraulics), in intermittent operation, out of sumps and vessels as well as to domestic and site drainage in accordance with EN 12050 (observing regional-specific regulations and instructions).

Key features / advantages

  • Submersible
  • Vortex impeller non-susceptible to clogging
  • Seal by two mechanical shaft seals
  • Optional external sealing chamber control for the oil barrier chamber
  • Very smooth operation
  • Easy installation due to suspension unit or pump base

Technical data

  • Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
  • Immersed operating mode: S1
  • Non-immersed operating mode: S2-15 min; S3 10%
  • Protection class: IP 68
  • Insulation class: F
  • Free passage: 50 / 65 / 80 mm
  • Cable length: 10 m
