Product name EMU RZP 20… – RZP 80-2… Rezijet
Type Dynamic fluid mixers
Media handled Clean water
Process liquids
Sludge / slurry / sewage
Applications Agitating
Circulating

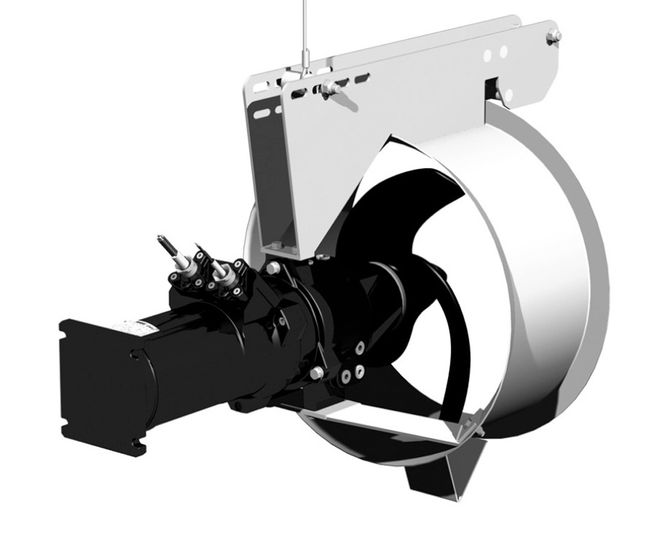

EMU RZP 20… – RZP 80-2… are directly driven submersible mixers with flow housing (RZP 20, RZP 25-2…, RZP 40…) or with single-stage planetary gear (RZP 50-3…, RZP 60-3…, RZP 80-2…).

Applications

  • Pumping sewage via low delivery heads at high flow rates, e.g. between balancing, nitrification and denitrification basins.
  • Pumping of industrial, raw, pure and cooling water, e.g. in paint finishing systems or for secondary hot water treatment.
  • Creation of fluid current in water channels, e.g. amusement parks.

They are available with a 2-, 3- or 4-blade propeller with a nominal diameter of 200 to 800mm.

Key features / benefits

  • Vertical or in-line construction
  • Self-cleaning propeller in part with helix hub
  • Propeller in steel or PUR version
  • ATEX and FM versions

Technical data

  • Mains connection: 3~400 V, 50 Hz
  • Submerged operating mode: S1
  • Protection class: IP68
  • Max. fluid temperature: 40 °C
  • Max. immersion depth: 20 m

Materials

  • Housing components: EN-GJL-250
  • Propellers: PUR or stainless steel 1.4571
  • Propeller hub: Stainless steel 1.4571
  • Screwed connections: Stainless steel 1.4301 or 1.4571
  • Gear shaft (from RZP 50-3): Stainless steel 1.4462
  • Flow housing: Stainless steel 1.4571


EMU RZP 20… – RZP 80-2… are directly driven submersible mixers with flow housing (RZP 20, RZP 25-2…, RZP 40…) or with single-stage planetary gear (RZP 50-3…, RZP 60-3…, RZP 80-2…).

Applications

  • Pumping sewage via low delivery heads at high flow rates, e.g. between balancing, nitrification and denitrification basins.
  • Pumping of industrial, raw, pure and cooling water, e.g. in paint finishing systems or for secondary hot water treatment.
  • Creation of fluid current in water channels, e.g. amusement parks.

They are available with a 2-, 3- or 4-blade propeller with a nominal diameter of 200 to 800mm.

Key features / benefits

  • Vertical or in-line construction
  • Self-cleaning propeller in part with helix hub
  • Propeller in steel or PUR version
  • ATEX and FM versions

Technical data

  • Mains connection: 3~400 V, 50 Hz
  • Submerged operating mode: S1
  • Protection class: IP68
  • Max. fluid temperature: 40 °C
  • Max. immersion depth: 20 m

Materials

  • Housing components: EN-GJL-250
  • Propellers: PUR or stainless steel 1.4571
  • Propeller hub: Stainless steel 1.4571
  • Screwed connections: Stainless steel 1.4301 or 1.4571
  • Gear shaft (from RZP 50-3): Stainless steel 1.4462
  • Flow housing: Stainless steel 1.4571
