Product Cartridge filters
Suitability Air
Smoke
Related products Filter cartridges

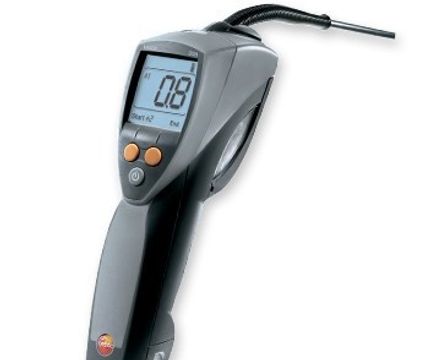

Testo 338 is an instrument for easy electronic soot count measurement for diesel engines. It records the soot count digitally to one decimal space with constant sampling.

  • Handy and robust: easily possible to carry to the desired application site
  • Determination of soot concentration (mg/m3) as well as Filter Smoke Number (FSN) or Bosch number
  • Easy one-handed operation
  • Direct analysis and display of measurement values, optional on-site printout of data with Testo fast printer

Technical data

Soot Concentration

Measuring Range: 0 to 70 mg/m³

Resolution; 0.01 mg/m³

Wiederholung; < 1.5 mg/m³ (0 to 5 mg/m³); < 1.25 mg/m³ +5 % of mv (5 to 70 mg/m³)


General technical data

Protection class: IP 40, TopSafe

Interface: IRDA / optional Bluetooth

Memory: 200 measuring values

Storage battery type: Lithium ion

Battery life: approx. 4 h cont. operation

Application temperature: Individual measurements up to +500 °C

Max. pos. press./flue gas: 300 mbar*

Test sample volume: 0.4 litres (range: 0 to 0.3 FSN); 0.2 litres (range: 0.2 to 2 FSN)

Measurement period: ? 60 s per measurement cycle

Flow-through measurement: Differential pressure sensor

Optical sensor: Opacity of the filter load in %
