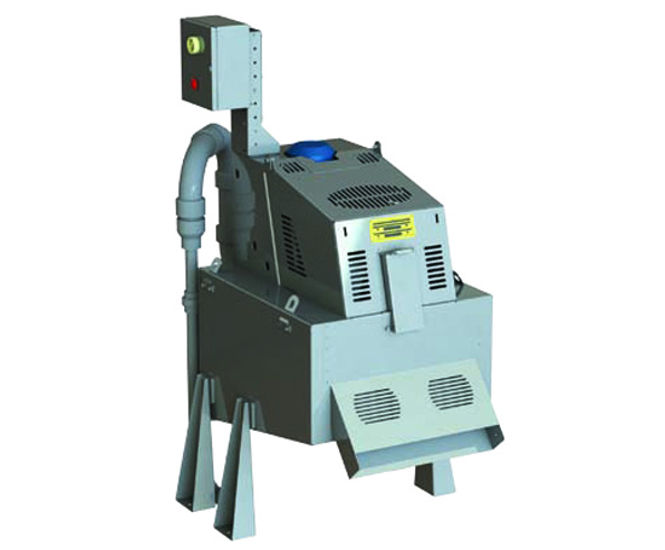

ACE Gritter is a grit de-waterer designed to receive grit pumped in suspension from the main process stream.

Operation

Flow enters the main reception chamber where grit is allowed to settle while the main stream flows over side weirs and is returned to the process stream.

A scraper arm deposits the grit into a discharge chute when the grit pumps stops delivering.

Liquid drains out of the grit bulk back to the flow, allowing grit to be collected and processed in a dewatered state.

Features and benefits

  • Infrequent operation minimises wear and power consumption
  • Straightforward to maintain and operate
  • Components in contact with grit are easy to replace
  • Energy efficient
  • Low fecal matter in processed grit

Technical details

  • Process input: grit in suspension removed from main process stream.
  • Process output: effluent with grit removed returned to main process stream.
  • By-product produced: grit containing up to 20% water and 10% process solids.
  • Capacity: 2 - 8 l/s.
  • Typical electric motor drive size: 0.25kW
  • No services required
