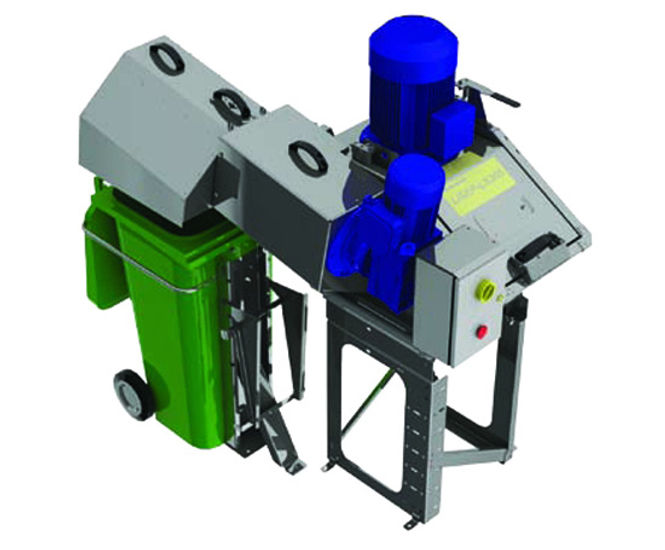

The Lisep unit provides high perfomance, reliable dewatering and integrated compaction, ideal for screenings handling.

Benefits and features

  • Clean screenings and low odour.
  • Low power usage.
  • Robust, compact design.
  • Easy to maintain.
  • Thousands of units operating around the UK and worldwide.
  • Discharge to skip, carryskip or wheelie-bin.
  • Allows flexibility of road layout on site for collections.
  • High compaction performance.
  • Organics returned to the flow.

With capacities suited from low population sites right up to operational installations on some of the world's largest treatment works, multiple units can also provide additional levels of redundancy and flexibility for projects.

Technical details

  • Process input: process effluent containing <10mm particle size.
  • Process output: compacted solids < 40% dry solids (by volume).
  • By-product produced: process effluent with particles < screen hole size (typically 2mm).
  • Capacity: 1-24 l/s.
  • Typical electric motor drive sizes: separator 1.5-7.5kW; compactor 0.37 to 1.5kW.
