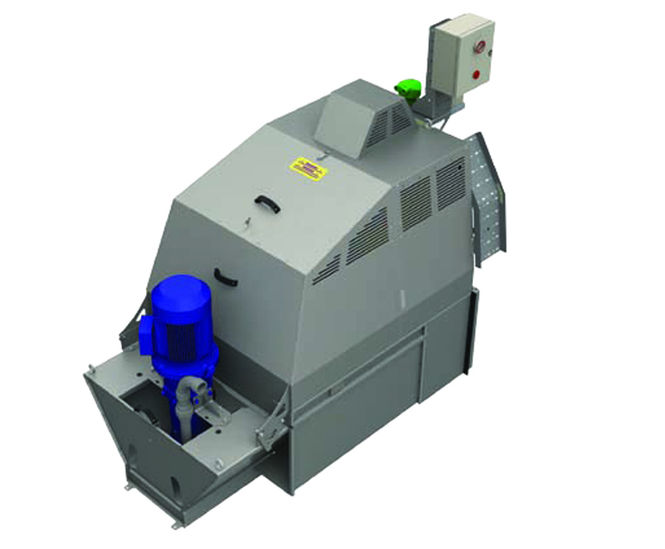

The ACE Bar Screen is used for channel or pipeline mounting coarse screening and automatic removal of solids from flow above bar spacing size (typically 6-10mm) in one dimension.

  • Process input: process effluent containing solids.
  • Process output: rocess effluent with solids < bar spacing (6-10mm) in one dimension.
  • By-product produced: process solids are macerated, using process effluent, suitable for transfer to a dewaterer at flow rate of 3 - 4 l/s
  • Services require: N/A
  • Capacity range:2-100 l/s.
  • Typical electric motor drive sizes: 1x 0.37kW & 1x 3.0kW

Designed for installation in concrete channels.

Solids are captured on a series of bars spaced equally across the unit. A semi rotary arm with teeth engages with the bars and rakes the solids into a hopper on the back of the unit.

A macerating pump, mounted on the hopper, is then used to transfer the solids to the required location, usually a dewaterer.

The output from the Coarse Screen is thus prepared for further processing with reduced risk of the bulk material in the flow interfering with additional process equipment.
