Product name Type 3360
Media Chemicals
Steam
Water
Valve type Angle seat valves
Construction Stainless steel
Max. pressure (bar) 16 bar
Min. temperature (deg. C) ambient: -25, media: -10
Max. temperature (deg. C) ambient: 55 or 65, media: 130 or 185 (depending on seat sealing material)
Min. connection size (mm) DN 15
Max. connection size (mm) DN 50

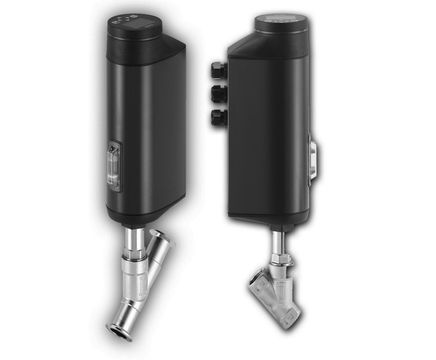

The innovative Type 3360 process controller valve is used to control tasks under demanding operating conditions.

The valve position is controlled by an electromotive actuator with ball screw which is fast and precise.

Features and benefits

  • fast, precision control
  • suitable for harsh environments
  • protection class IP65 / IP67
  • high impact and vibration resistance
  • long cycle life
  • sealing integrity guaranteed by proven self-adjusting spindle packing with exchangeable V-seals
  • easy cleaning by its design according hygienic demands
  • many diagnostic functions by monitoring of valve and operation data

It has a high positioning speed of 6 mm/s, that provides that reacts to process signals with an almost delay-free speed, and can be varied according to customer demands.

Pressure variations or shocks in the medium are not transferred to the valve position. If necessary, the safety position can be approached by an optional energy storage in case of power failure.

Actuator and valve are adapted perfectly to each other due to the closed design and robust surface. This ensures the hygienic requirements of a fast and residue-free cleaning.

Control

Type 3360 is suitable for fieldbus provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.


The innovative Type 3360 process controller valve is used to control tasks under demanding operating conditions.

The valve position is controlled by an electromotive actuator with ball screw which is fast and precise.

Features and benefits

  • fast, precision control
  • suitable for harsh environments
  • protection class IP65 / IP67
  • high impact and vibration resistance
  • long cycle life
  • sealing integrity guaranteed by proven self-adjusting spindle packing with exchangeable V-seals
  • easy cleaning by its design according hygienic demands
  • many diagnostic functions by monitoring of valve and operation data

It has a high positioning speed of 6 mm/s, that provides that reacts to process signals with an almost delay-free speed, and can be varied according to customer demands.

Pressure variations or shocks in the medium are not transferred to the valve position. If necessary, the safety position can be approached by an optional energy storage in case of power failure.

Actuator and valve are adapted perfectly to each other due to the closed design and robust surface. This ensures the hygienic requirements of a fast and residue-free cleaning.

Control

Type 3360 is suitable for fieldbus provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.
