Chemicals / parameters Chlorine
Water quality
Suitability Food / drink
Potable water
Process liquids
Wastewater / effluent
System type Sensors
Accuracy (±%) ±0.02 ppm of the M.V / ±0.01 ppm or ±3% of the M.V, which ever is greater
Max. sample temperature (°C) +50°C

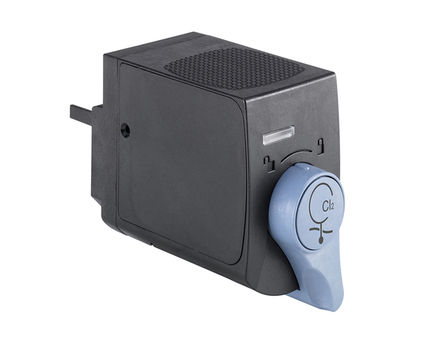

Type MS02  is a Chlorine / Chlorine dioxide Sensor Cube and is designed to fit into chlorine monitoring systems in a variety of aqueous environments.

It can be used for a variety of applications including municipal water systems, monitoring of industrial cooling and rinse water, drinking water and wastewater.

The device is selectable to measure chlorine or chlorine dioxide in water. It is used within the Online Analysis System Type 8905 by being plugged into a spare fluidic backplane slot.

The sensor cube contains a high precision membrane covered amperiometric sensor, based on microelectromechanical systems technology (MEMS). The measurement signal shows the Cl2 or ClO2 content within the sample water. The chlorine measurement reflects either the available chlorine HOCl or, if coupled with a MS01 pH sensor cube for pH compensation, the free chlorine. The electrical and fluidic connections are made via the connection panel of the system. The sensor cube is communicating via büS, so the recognition at the Online Analysis System is fully automatic. When plugging into a system, the sensor will be found in the list of büS members for further customized adjustments.

Key features

  • Fully compatible with büS systems and a wide range of further analysis sensor cubes
  • Optional pH compensated chlorine measurement
  • Modular sensor cube for hot swap (exchange during operation)
  • Minimal sample water flow needed
  • MEMS technology sensor


Type MS02  is a Chlorine / Chlorine dioxide Sensor Cube and is designed to fit into chlorine monitoring systems in a variety of aqueous environments.

It can be used for a variety of applications including municipal water systems, monitoring of industrial cooling and rinse water, drinking water and wastewater.

The device is selectable to measure chlorine or chlorine dioxide in water. It is used within the Online Analysis System Type 8905 by being plugged into a spare fluidic backplane slot.

The sensor cube contains a high precision membrane covered amperiometric sensor, based on microelectromechanical systems technology (MEMS). The measurement signal shows the Cl2 or ClO2 content within the sample water. The chlorine measurement reflects either the available chlorine HOCl or, if coupled with a MS01 pH sensor cube for pH compensation, the free chlorine. The electrical and fluidic connections are made via the connection panel of the system. The sensor cube is communicating via büS, so the recognition at the Online Analysis System is fully automatic. When plugging into a system, the sensor will be found in the list of büS members for further customized adjustments.

Key features

  • Fully compatible with büS systems and a wide range of further analysis sensor cubes
  • Optional pH compensated chlorine measurement
  • Modular sensor cube for hot swap (exchange during operation)
  • Minimal sample water flow needed
  • MEMS technology sensor
