Media handled Aggressive / corrosive media
High purity media
Highly viscous media
Pump type Progressing cavity pumps
Max. pressure up to 24 bar / 350 PSI

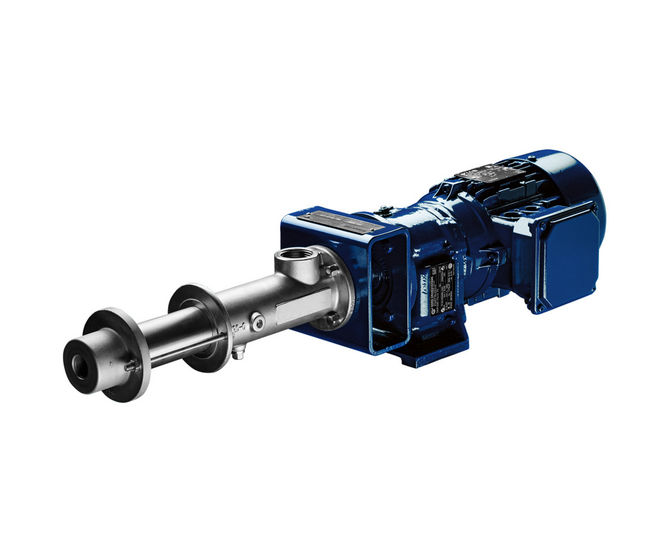

SEEPEX metering pumps achieve a metering accuracy of ±1%. They’re used wherever low to highly viscous media, media containing solids and chemically corrosive media are processed and all with low pulsation and to the exact drop. Suitable for all industries with hygienic options available.

Key features

  • Modular system for quick and easy conversion
  • Low pulsation pumping
  • High metering accuracy (deviation ±1%)
  • Easy maintenance due to the plug-in connection
  • Material combinations available for all conveying products
  • Multiple drive combinations possible

Ranges

Smart dosing pump range

  • Thin to highly viscous media, as well as solids and corrosive liquids
  • Conveying capacity: 0,3 l/h - 180 l/h
  • Pressure: up to 48 bar
  • Integrated PLC to enable stand alone operation in distributed control systems

MD range

  • For low to highly visous media, as wll as shear-sensitive and chemically aggressive media
  • Conveying capacity: 0.2 l/h – 1,000 l/h
  • Pressure: up to 24 bar
  • Short, compact design with directly flange-mounted drive (block type)

MDP range

  • For low to highly visous media, as well as shear-sensitive and chemically corrisive media
  • Conveying capacity: 1 l/h – 500 l/h
  • Pressure: up to 12 bar
  • Single-part, jointless and wear-resistant rotating unit made of synthetic material

MDT range

  • For highly viscous products with low flowability
  • Conveying capacity: 5 l/h – 500 l/h
  • Pressure: up to 24 bar
  • Open hopper pump with compression zone and auger feed screw

MDC range: hygienic dosing pump

  • For highly viscous products with low flowability
  • Conveying capacity: 0.5 l/h – 500 l/h
  • Pressure: up to 24 bar
  • Highest hygienic standards as well as corrosion and wear resistance

MDTC range: hygienic dosing pump

  • For highly viscous products with low flowability
  • Conveying capacity: 0.5 l/h – 500 l/h
  • Pressure: up to 24 bar
  • Open hopper pump with cylindrical/conical compression zone and auger feed screw

MDF range: barrel emptying pump

  • For non-viscous to viscous media
  • Conveying capacity: 0.5 l/h – 1,000 l/h
  • Pressure: up to 12 bar
  • Draining pump for open top barrels or closed barrels with 2" bung holes


SEEPEX metering pumps achieve a metering accuracy of ±1%. They’re used wherever low to highly viscous media, media containing solids and chemically corrosive media are processed and all with low pulsation and to the exact drop. Suitable for all industries with hygienic options available.

Key features

  • Modular system for quick and easy conversion
  • Low pulsation pumping
  • High metering accuracy (deviation ±1%)
  • Easy maintenance due to the plug-in connection
  • Material combinations available for all conveying products
  • Multiple drive combinations possible

Ranges

Smart dosing pump range

  • Thin to highly viscous media, as well as solids and corrosive liquids
  • Conveying capacity: 0,3 l/h - 180 l/h
  • Pressure: up to 48 bar
  • Integrated PLC to enable stand alone operation in distributed control systems

MD range

  • For low to highly visous media, as wll as shear-sensitive and chemically aggressive media
  • Conveying capacity: 0.2 l/h – 1,000 l/h
  • Pressure: up to 24 bar
  • Short, compact design with directly flange-mounted drive (block type)

MDP range

  • For low to highly visous media, as well as shear-sensitive and chemically corrisive media
  • Conveying capacity: 1 l/h – 500 l/h
  • Pressure: up to 12 bar
  • Single-part, jointless and wear-resistant rotating unit made of synthetic material

MDT range

  • For highly viscous products with low flowability
  • Conveying capacity: 5 l/h – 500 l/h
  • Pressure: up to 24 bar
  • Open hopper pump with compression zone and auger feed screw

MDC range: hygienic dosing pump

  • For highly viscous products with low flowability
  • Conveying capacity: 0.5 l/h – 500 l/h
  • Pressure: up to 24 bar
  • Highest hygienic standards as well as corrosion and wear resistance

MDTC range: hygienic dosing pump

  • For highly viscous products with low flowability
  • Conveying capacity: 0.5 l/h – 500 l/h
  • Pressure: up to 24 bar
  • Open hopper pump with cylindrical/conical compression zone and auger feed screw

MDF range: barrel emptying pump

  • For non-viscous to viscous media
  • Conveying capacity: 0.5 l/h – 1,000 l/h
  • Pressure: up to 12 bar
  • Draining pump for open top barrels or closed barrels with 2" bung holes
