Metering and dosing pumps

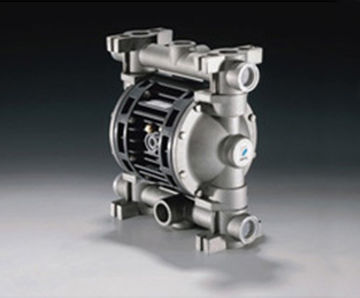

APB air driven diaphragm pumps are cost-effective, leakage free displacement pumps for flow capacities up to approximately 51m³/ h. They are driven by dry, non-lubricated compressed air. Field of application: free-flowing chemicals with aggressive; odorous; abrasive; flammable; viscous; toxic characteristics. Advantages: cost-effective; leakage

The Spring Series PS1 plunger piston metering pump offers a flexibility of choice combining different pump head and engine power options that ensures a solution for almost any eventuality or application. The PS1 Series’ performance achieves flow levels between 1.5 - 304 l/h at pressures up to 20 bar. Each model can be configured with 2 different

SEEPEX metering pumps achieve a metering accuracy of ±1%. They’re used wherever low to highly viscous media, media containing solids and chemically corrosive media are processed and all with low pulsation and to the exact drop. Suitable for all industries with hygienic options available: modular system for quick and easy conversion; low pulsation

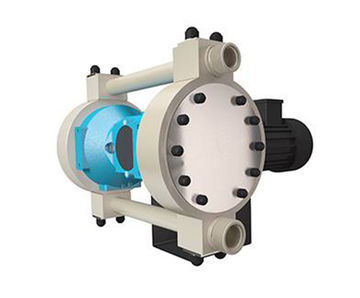

sera ZXM411.3/ZXRI411.3 diaphragm feeding pumps feed and transfuse aggressive media with a low viscosity. Field of application: flow free mediums with aggressive; abrasive; viscous; radioactive; flammable; odorous; toxic characteristics. Capability characteristics: leakage free; dry run safety; high quality materials; continuous operation with

Tekna AKL solenoid dosing pumps are manufactured from PVDF, making them suitable for almost all chemicals used in industrial, wastewater treatment and potable water applications. They also feature ceramic ball valves, which improve the pumping reliability and chemical compatibility. The Tekna AKL is an analogue dosing pump. It has a constant flow

The Tekna TPG range of solenoid dosing pumps is manufactured from PVDF, making it suitable for almost all chemicals used in industrial, wastewater treatment and potable water applications. It also features ceramic ball valves, which improve the pumping reliability and chemical compatibility. The Tekna TPG is a digital dosing pump with a manually

Peristaltic pumps are safe and reliable, with a shockproof, chemical-resistant, polypropylene enclosure, IP65 integrity and Class 2 electrical insulation. They are low-maintenance and easy to install. Wall mounting and removal is straightforward, and plugs on the circuit board enable quick electrical connection. They are made in compliance with

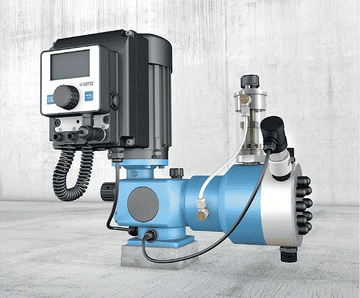

sera C409.2KM controllable piston diaphragm pumps are leakage-free oscillating displacement pumps designed for the dosing of volumes up to 190 l/h and up to maximum 80 bar. They are an ideal combination of the high supply pressure of a piston pump and the perfect leak-proofness of a diaphragm pump. Field of application - flow-free mediums with

The Tekna TPR range of solenoid dosing pumps is manufactured from PVDF, making it suitable for almost all chemicals used in industrial, wastewater treatment and potable water applications. It also features ceramic ball valves, which improve the pumping reliability and chemical compatibility. The Tekna TPR digital dosing pump includes a built-in

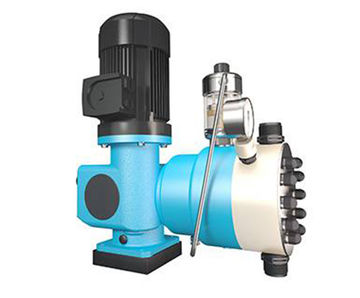

sera R410.2KM piston diaphragm pumps are leak-free oscillating displacement pumps designed for the dosing of volumes up from 30 l/h to 850 l/h. They are an ideal combination of the high supply pressure of a piston pump and the perfect leak-proof diaphragm pump. Field of application - flow free mediums with: aggressive; abrasive; viscous

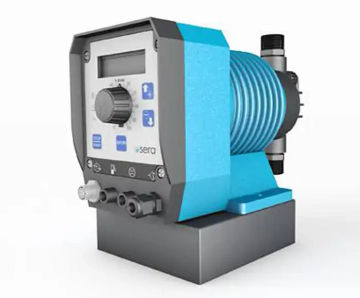

RS204.1 / CS204.1 are electronically controlled, self ventilating dosing pumps suitable for many applications. They are designed for industrial use and guarantee highest operational reliability. They are used for the dosing of easily degassing media in combination with small liquid quantities. Without an automatic venting valve, a failure of the

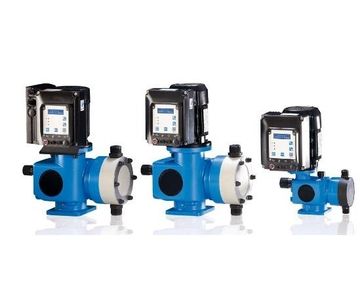

The sera controllable diaphragm dosing pumps types C409.2 + C410.2 are electronically controlled dosing pumps that can be used for many applications. A wide range of pump head materials is available. C series pumps can provide solutions for sophisticated and demanding applications. Typical applications include the dosing of liquid chemicals in

The Tekna TCK range of solenoid dosing pumps is manufactured from PVDF, making it suitable for almost all chemicals used in industrial, wastewater treatment and potable water applications. It also features ceramic ball valves, which improve the pumping reliability and chemical compatibility. The Tekna TCK is a digital dosing pump with constant

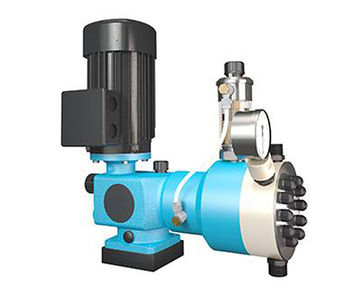

sera R409.2-KM piston diaphragm pumps are leak-free oscillating displacement pumps for the dosing of volumes 7.5 l/h to 190 l/h. A further advantage compared with conventional diaphragm pumps is the doubling or, depending on application, even quadrupling of diaphragm lifetimes. This helps to reduce the life cycle cost (operational cost

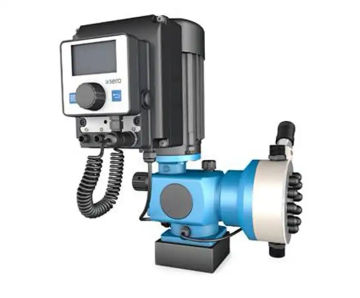

The ML-series work with flow capacites from 11 l/h to 1200 l/h. The materials are selected appropriately for single or double valves, ball valves and valve seals. Visual diaphragm rupture display with manometer. Starter motor with three-phase alternating current. Field of application - flow free mediums with: aggressive; viscous; radioactive
