Type Valve islands

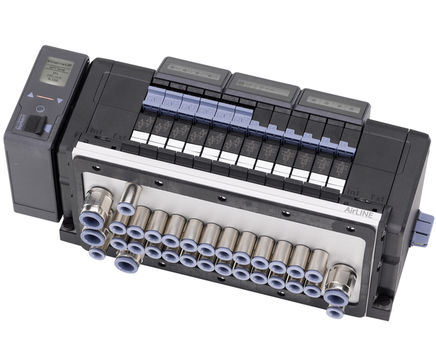

Type 8652 AirLINE valve island is optimised for process automation.

Diagnostics are displayed on the LC display in clear text and symbols helping save time during start-up and maintenance.

The diagnostic message is also available in the PLC for a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet. It is also possible to fix the AirLINE to top hat rail.

Key pneumatic functions ensure increased process reliability. For instance, the non-return valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

Key features

  • Compact design
  • Easy diagnostics by LC display
  • Process reliability through pneumatic functions
  • Optimised for installation at the bottom of the control cabinet

Compatible products

Type 8652 AirLINE valve island can be combined with:

  • Type 8905 Online Analysis System
  • Type 8098 FLOWave SAW-Flowmeter
  • Type ME43 Fieldbus Gateway
  • Type 2012 2/2 way globe valve
  • Type 8695 Control head
  • Type 04987 Double piot controlled check valve


Technical data

Circuit functions
C 2 x 3/2 way (NC/NC)
D 2 x 3/2 way (NO/NO)
H (5/2 way)
Z (5/2 way) impulse / bistable

Width/station: 11 mm

Max flow rate: 310 l/min

Pressure range:?Vac. up to 10 bar

Ambient temperature: -10 to 55ºC

Protection class: IP20


Type 8652 AirLINE valve island is optimised for process automation.

Diagnostics are displayed on the LC display in clear text and symbols helping save time during start-up and maintenance.

The diagnostic message is also available in the PLC for a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet. It is also possible to fix the AirLINE to top hat rail.

Key pneumatic functions ensure increased process reliability. For instance, the non-return valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

Key features

  • Compact design
  • Easy diagnostics by LC display
  • Process reliability through pneumatic functions
  • Optimised for installation at the bottom of the control cabinet

Compatible products

Type 8652 AirLINE valve island can be combined with:

  • Type 8905 Online Analysis System
  • Type 8098 FLOWave SAW-Flowmeter
  • Type ME43 Fieldbus Gateway
  • Type 2012 2/2 way globe valve
  • Type 8695 Control head
  • Type 04987 Double piot controlled check valve


Technical data

Circuit functions
C 2 x 3/2 way (NC/NC)
D 2 x 3/2 way (NO/NO)
H (5/2 way)
Z (5/2 way) impulse / bistable

Width/station: 11 mm

Max flow rate: 310 l/min

Pressure range:?Vac. up to 10 bar

Ambient temperature: -10 to 55ºC

Protection class: IP20
