Sector Manufacturing
Project type New build
Services provided Design
Project management
Construction
Installation
Commissioning
Products used GEMÜ BioStar valves



Application

In the production of eye ointment, it is vitally important to ensure that the components are mixed correctly and, above all, that they are sterile. For this purpose, the plant includes a vacuum process system including two sequentially switched mixing tanks with speed-controlled agitators. Their task is to mix the fully automated process media gently at a constant pressure and to emulsify them. In order to avoid boundary layers during the mixing process and to guarantee constant and even consistency, the mixture is withdrawn from the pre-mixer and fed into the final mixer via a sophisticated pipe system. This ensures that no concentration gradients occur and that the eye ointment is perfectly mixed and to a constant high quality. After preparation is complete, the eye ointment is passed on to storage containers.

Plant design

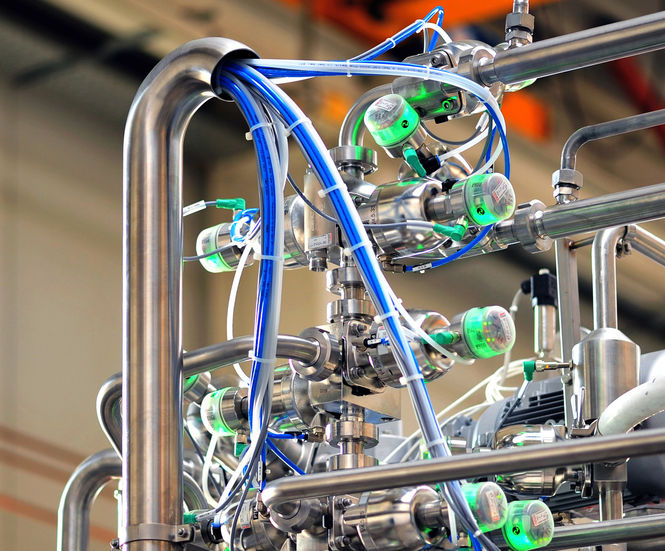

For controlling the sterile media, stainless steel aseptic multi-port diaphragm valve blocks were selected for feeding the media in the bypass pipe system and for removal of the final product. Cleaning and sterilisation of the whole production line is also integrated into the block valves’ functionality with SIP (Steam in place) valves machined into the blocks. This means that unnecessary deadlegs between the valves can be avoided and welded joints saved. A further special feature is the fully automatic control/monitoring system using fieldbus supported switchboxes.

All valve functions are combined into the compact multi-port valve blocks (GEMÜ-M600) based on diaphragm valves. The valve blocks are individually designed to meet all requirements during the system planning phase. The GEMÜ BioStar range of actuated and manual valves, such as GEMÜ 650, 653, and 654 are used to operate the valves. All BioStar valves are designed according to Good Manufacturing Practice (GMP) for use in a sterile environment. On top of their safe function, their design also ensures that they can be easily cleaned externally. GEMÜ 1236 switchboxes are mounted on the GEMÜ 650 pneumatic actuators. The current position of the valve is displayed via high visibility LEDs and fed back to the plant control system.


Application

In the production of eye ointment, it is vitally important to ensure that the components are mixed correctly and, above all, that they are sterile. For this purpose, the plant includes a vacuum process system including two sequentially switched mixing tanks with speed-controlled agitators. Their task is to mix the fully automated process media gently at a constant pressure and to emulsify them. In order to avoid boundary layers during the mixing process and to guarantee constant and even consistency, the mixture is withdrawn from the pre-mixer and fed into the final mixer via a sophisticated pipe system. This ensures that no concentration gradients occur and that the eye ointment is perfectly mixed and to a constant high quality. After preparation is complete, the eye ointment is passed on to storage containers.

Plant design

For controlling the sterile media, stainless steel aseptic multi-port diaphragm valve blocks were selected for feeding the media in the bypass pipe system and for removal of the final product. Cleaning and sterilisation of the whole production line is also integrated into the block valves’ functionality with SIP (Steam in place) valves machined into the blocks. This means that unnecessary deadlegs between the valves can be avoided and welded joints saved. A further special feature is the fully automatic control/monitoring system using fieldbus supported switchboxes.

All valve functions are combined into the compact multi-port valve blocks (GEMÜ-M600) based on diaphragm valves. The valve blocks are individually designed to meet all requirements during the system planning phase. The GEMÜ BioStar range of actuated and manual valves, such as GEMÜ 650, 653, and 654 are used to operate the valves. All BioStar valves are designed according to Good Manufacturing Practice (GMP) for use in a sterile environment. On top of their safe function, their design also ensures that they can be easily cleaned externally. GEMÜ 1236 switchboxes are mounted on the GEMÜ 650 pneumatic actuators. The current position of the valve is displayed via high visibility LEDs and fed back to the plant control system.
