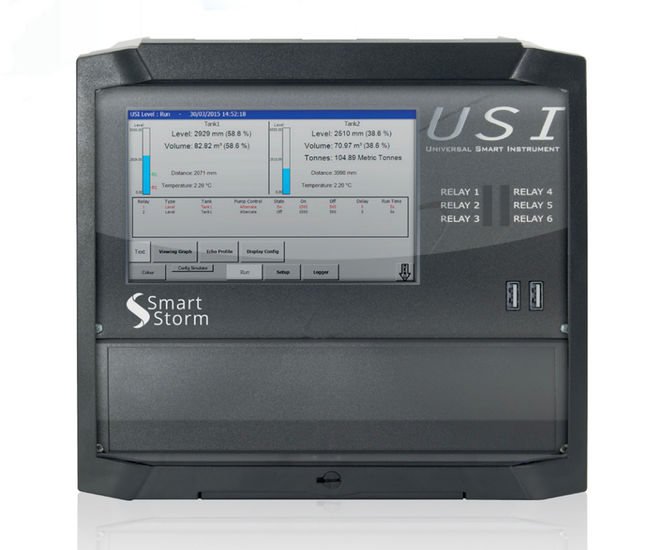

USI – Magflow from Smart Storm is a two-channel induction flow meter for closed pipes, designed to measure conductive liquid flow. Data logging, up to two flow sensors, multiple 4–20mA input/outputs, and digital communications are included. Suitable for plastic or metal pipes with a choice of sensor linings and flange or wafer fittings.

  • Flow meter suitable for closed pipes handling only conductive liquids
  • Records flow data for up to 22 years with built-in data logger
  • Supports up to two induction flow sensors simultaneously
  • Choice of hard rubber, soft rubber, or PTFE sensor linings
  • IP66 or IP68 rated for sensor enclosures
  • 6 programmable relays and Ethernet/RS422 or Modbus communications
  • Multiple input and output options for integration with external devices

Applications

Trade effluent flow monitoring

Waste water flow measurement

Chemical flow monitoring

Drinking water applications

Industrial and municipal liquid flow

Options and variations

Choice of flange or wafer fitting

Range of sensor linings: hard rubber, soft rubber, special rubber, PTFE

IP66 or IP68 sensor enclosure

Plastic pipe installations require earthing rings

Performance

Measurement range up to 12 m/s flow speed

Data logging capacity for 22 years

Installation

Cable length between display and sensors specified at order
