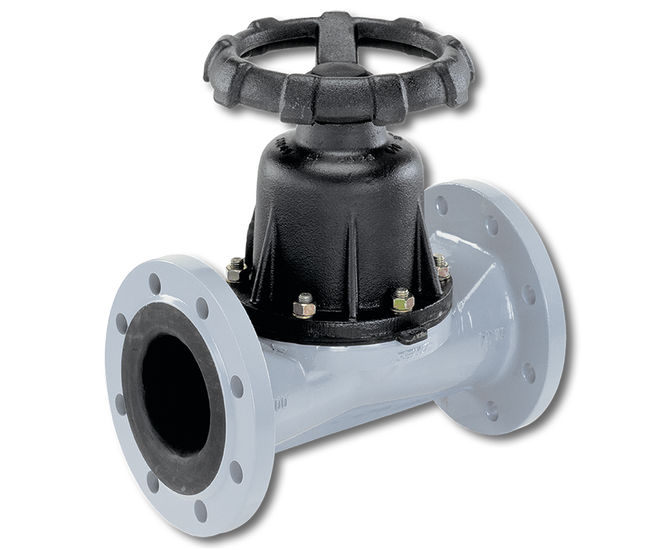

The GEMÜ 655 2/2-way diaphragm valve has a metal handwheel and is manually operated. The valve body has a full bore design.

Key features

  • High mechanical stability
  • High flow rate due to straight through flow
  • Can be retrofitted with a pneumatic actuator
  • Non-rising, robust metal handwheel
  • Thrust-bearing handwheel for larger diameters
  • Body available with hard or soft rubber lining
  • Minimal deadleg internal contour for good flow conditions and high Kv values
  • Particularly suitable for media with high solid matter content
  • Optimally suited compressor
  • Threaded diaphragm pin for optimum diaphragm seat and long service life

Technical specifications

  • Connection: flange
  • Actuator: manual
  • Seal material
  • Body material: EN-GJL-250, cast iron material; EN-GJS-400-18-LT, SG iron material; EN-GJS-500-7, ductile iron material
  • Conformities: EAC
  • Max. operating pressure: 7 bar
  • Max. media temperature: 100 ° C
  • Nominal sizes: DN 25 (1''); DN 40 (1 1/2''); DN 50 (2''); DN 65 (2 1/2''); DN 80 (3''); DN 100 (4''); DN 125 (5''); DN 150 (6''); DN 200; DN 250; DN 300
