Product name Hydro-Industrial Drum Screen
Media screened Wastewater / effluent

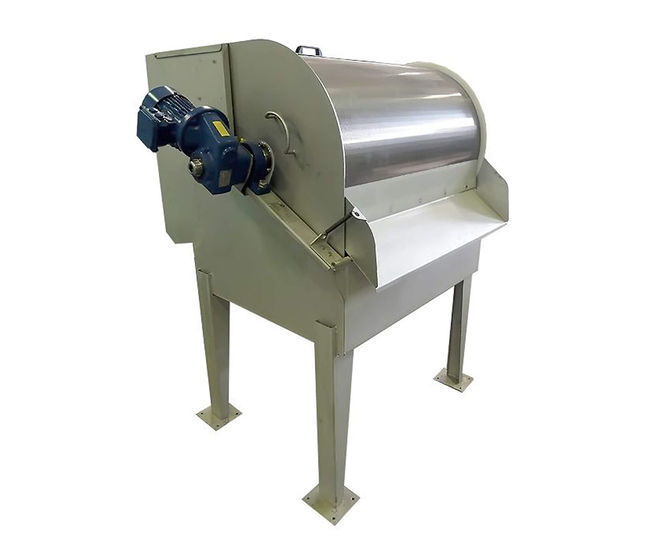

The Hydro-Industrial externally-fed rotary drum screen reliably and effectively separates screenings from industrial wastewater prior to further treatment.

The compact nature of the system ensures effective screening in a small footprint (as little as 0.9m2 / 9.6ft2), particularly for effluent containing high concentrations of fats and oils, and a hydraulic throughput of up to 105 l/s / 1,600gpm enables industrial facilities to handle high volumes in a single unit - removing nuisance and damaging materials to protect and improve downstream treatment processes.

Easy to operate, quick and simple to maintain, and its low power and low flushing water consumption make it a highly economical treatment option.

Applications

  • Meat and poultry slaughter and processing
  • Dairy and milk processing
  • Fish canning
  • Vegetable processing
  • Brewing and winemaking
  • Oil and fat processing
  • Chemicals and petrochemicals
  • Textiles and leather production

Benefits

  • Cut sewerage discharge costs through improved effluent quality
  • Reduce energy costs by removing more BOD
  • Increase downstream treatment capacity through removal of solids and BOD
  • Cut screening costs with low flushing water and low energy consumption
  • Screen high volumes of wastewater in a small footprint
  • Prevent downstream damage, blockages and wear - separate damaging and clogging materials from the onward treatment process
  • Tackle wastewater with high concentrations of fats and oils

Specifications

  • Particle size: >250 µm
  • Hydraulic throughput: 9-105 l/s / 142-1,600 gpm
  • Flushing water consumption at 45 psi: 0.1-1 l/s / 1.5-15 gpm
  • Power: 0.3-1.0 hp

Features

  • Small footprint: unit sizes range from 0.9-4.3m2 / 9.6-46.5ft2
  • Long lifetime: strengthened filtering mesh, wear-resistant polyamide and passivated stainless steel increase the durability and system lifetime
  • Corrosion resistant: stainless steel protects against wastewater corrosion; design limits water contact to corrosion-resistant materials
  • Quick, easy installation: small-footprint, simple design enables straightforward installation and integration into existing processes
  • Simple maintenance: simple design and easy access makes cleaning and maintenace quick and easy
  • Material options include AISI 316 and AISI 321 stainless steel


The Hydro-Industrial externally-fed rotary drum screen reliably and effectively separates screenings from industrial wastewater prior to further treatment.

The compact nature of the system ensures effective screening in a small footprint (as little as 0.9m2 / 9.6ft2), particularly for effluent containing high concentrations of fats and oils, and a hydraulic throughput of up to 105 l/s / 1,600gpm enables industrial facilities to handle high volumes in a single unit - removing nuisance and damaging materials to protect and improve downstream treatment processes.

Easy to operate, quick and simple to maintain, and its low power and low flushing water consumption make it a highly economical treatment option.

Applications

  • Meat and poultry slaughter and processing
  • Dairy and milk processing
  • Fish canning
  • Vegetable processing
  • Brewing and winemaking
  • Oil and fat processing
  • Chemicals and petrochemicals
  • Textiles and leather production

Benefits

  • Cut sewerage discharge costs through improved effluent quality
  • Reduce energy costs by removing more BOD
  • Increase downstream treatment capacity through removal of solids and BOD
  • Cut screening costs with low flushing water and low energy consumption
  • Screen high volumes of wastewater in a small footprint
  • Prevent downstream damage, blockages and wear - separate damaging and clogging materials from the onward treatment process
  • Tackle wastewater with high concentrations of fats and oils

Specifications

  • Particle size: >250 µm
  • Hydraulic throughput: 9-105 l/s / 142-1,600 gpm
  • Flushing water consumption at 45 psi: 0.1-1 l/s / 1.5-15 gpm
  • Power: 0.3-1.0 hp

Features

  • Small footprint: unit sizes range from 0.9-4.3m2 / 9.6-46.5ft2
  • Long lifetime: strengthened filtering mesh, wear-resistant polyamide and passivated stainless steel increase the durability and system lifetime
  • Corrosion resistant: stainless steel protects against wastewater corrosion; design limits water contact to corrosion-resistant materials
  • Quick, easy installation: small-footprint, simple design enables straightforward installation and integration into existing processes
  • Simple maintenance: simple design and easy access makes cleaning and maintenace quick and easy
  • Material options include AISI 316 and AISI 321 stainless steel
