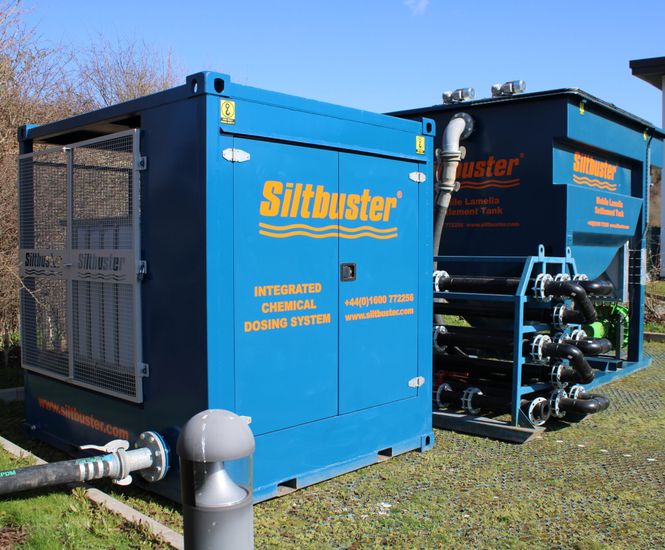

The iCDS is a compact, containerised chemical dosing system capable of treating flow rates of over 100m3/hr. It offers a standard three-stage dosing designed to dose coagulants and flocculants on a flow proportional basis. This prevents the risk of overdosing. It can also automatically adjust the pH level to enable the pH to be both increased and/or decreased. An additional Siltbuster system can easily be added providing the option for 4 stage dosing for more complex water treatment requirements.

The iCDS’ storage area is fully bunded and secured by lockable, bi-fold gates on three sides providing maximum accessibility on site during chemical replenishment, which ensures a flexible solution for any location. The fourth side of the iCDS accommodates a heated, weather-proof and secure compartment, which contains the dosing pumps, flow meter and control system.

Key features

  • Secured access
  • Rapidly deployable
  • Compact
  • Modular plug and play dosing
  • Low power requirements
  • Easily adaptable to three- or four-stage dosing

Capacities

Flow rates of over 100m?/hr.

Installation

The new chemical dosing system is built for rapid site deployment and has been sized to easily fit standard transport layouts. It been fitted with multiple lifting mechanism options, ensuring all site loading and unloading possibilities are catered for.
