Battery production has increased in step with the demands of electric vehicles and renewable energy storage. Batteries are central to modern technologies and the transition to more sustainable energy systems.
Behind every battery cell lies a complex manufacturing process with demanding operating conditions. From raw material extraction and hydrometallurgical refining to slurry preparation, electrolyte production and recycling, valves are exposed to aggressive chemicals, abrasive slurries and high solids content. Corrosion resistance, abrasion control, process reliability and automation capability are essential to ensure consistent product quality and long service life.

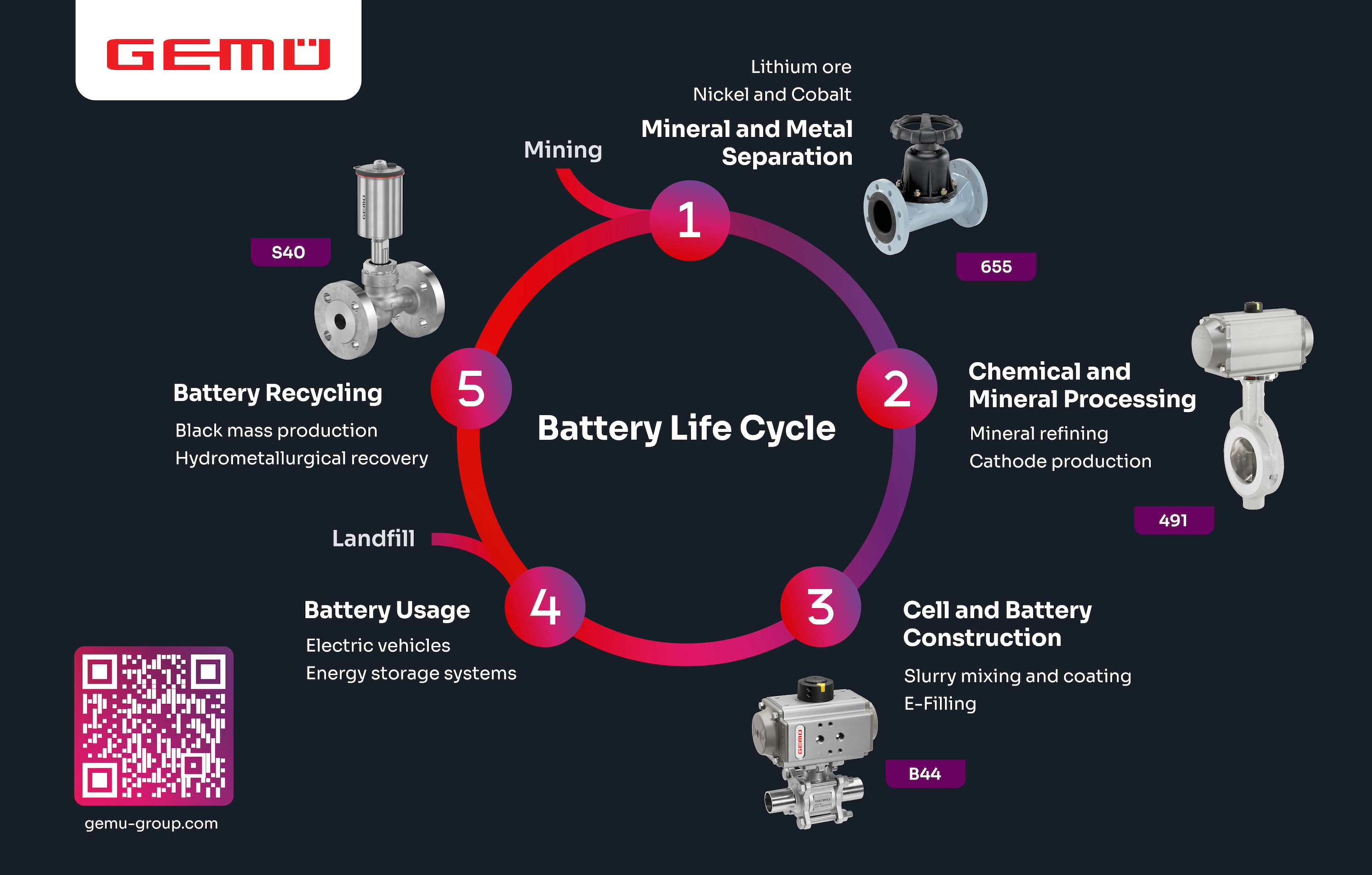

GEMÜ provides a range of valves to support the entire battery lifecycle
GEMÜ provides a comprehensive portfolio of durable, chemical-resistant and digitally integrable valve, measurement and control solutions tailored to battery manufacturing. With in-house material expertise, GEMÜ help customers select optimal body and lining materials to maximise plant availability and system performance.
In hydrometallurgical processes, lined diaphragm valves like the pneumatically operated GEMÜ 620 offer reliable isolation and control. Hard rubber, PFA or PP linings provide excellent resistance to aggressive media.
For high-solids applications, deep-seated diaphragm valves like the GEMÜ 655 ensure dependable opening and closing.
Butterfly valves, including the GEMÜ R481 and GEMÜ 491, are suited for on/off duties and coarse solid flows, with chemical-resistant linings and coatings available.
For demanding control tasks in electrolyte production and recycling, the GEMÜ S40 enables precise, stable flow regulation for dosing organic solvents and handling carbonates - supporting compliance with stringent purity and safety requirements.
Across every stage of the battery lifecycle, GEMÜ delivers robust valve technology engineered for reliability in challenging process environments.
Separating minerals and metals for battery production
GEMÜ 655 Full Bore Diaphragm Valve
Handles mineral and metal separation processes, full bore design and chemical resistant linings suited to abrasive slurries and aggressive media.
Performance Specs:
Size & Range: DN 25-300
Pressure: 0-10 bar
Temperature: 0-100°C
Flow: Kv up to 5180 m³/h (DN 300)
Design: Full bore for minimal pressure drop
Materials:
Linings: Hard rubber, soft rubber, butyl
Diaphragms: EPDM, NBR, CR, IIR, NR
Key Benefits:
Handles aggressive chemicals and high-solids slurries
Manual operation with pneumatic retrofit option
Chemical-resistant construction
Chemical and mineral processing to get battery grade materials
GEMÜ 490/491/497/498 Edessa Butterfly Valves
Edessa butterfly valve series support chemical and mineral processing. High chemical resistance and flow capacity are suited for controlling large volumes of acids, alkalis, and chemicals needed to transform minerals into battery grade cathode materials.
Performance Specs:
Size & Range: DN 40-1200 (1½"-48")
Pressure: 3-10 bar
Temperature: -20 to 200°C
Flow: Kv up to 92,100 m³/h (DN 1200)
Design: Concentric soft-seal, full-bore flow path
Materials:
Body lining: TFM™ (PTFE) or PFA
Seals: TFM/FKM, TFM/EPDM, TFM/silicone (FDA compliant)
Disc: Stainless steel, Hastelloy, Titanium, or PFA-encapsulated
Actuation:
Manual: Handwheel or lever
Pneumatic: ADA/ASR, DR/SC series
Electric: 15-200 Nm torque
Key Benefits:
Superior chemical resistance to acids, alkalis, and organic solvents
Smooth sealing surface reduces particle generation
ATEX-compliant versions available
Vacuum capable (down to 50 mbar absolute)
Cell and battery construction
GEMÜ B44 Pneumatic Ball Valve
B44 is suited to slurry mixing and coating operations, where electrode materials are applied to current collectors and during e-filling. High purity construction and FDA compliant seals prevent contamination.
Performance Specs:
Size & Range: DN 8-100
Pressure: 0-63 bar
Temperature: -10 to 220°C
Flow: Kv up to 1462 m³/h (DN 100)
Design: 3-piece full-bore with blow-out proof shaft
Materials:
Body: 1.4435 (316L) low ferrite (<3%) investment cast
Ball & connections: 1.4435
Shaft: 1.4409 (SS316L)
Seals: PTFE (FDA, USP Class VI, EU 10/2011 compliant)
Surface Finishes:
ASME SF5: Ra =0.51 µm (electropolished)
SF4: Ra =0.38 µm
Standard: Ra =0.4 µm (electropolished internal/external)
Actuation:
Pneumatic: ADA/ASR (double/single acting, 6-8 bar)
DR/SC series (20° adjustable travel)
Lockable hand lever
ISO 5211 mounting
Key Benefits:
Minimal deadleg cavity-filled seal reduces contamination
Double spindle seal for leak-free operation
Material certificates for all wetted components
Vacuum capable (50 mbar absolute)
Battery recycling
GEMÜ S40 Pneumatically Operated Globe Valve
S40 provides precise flow control in battery recycling, from black mass production to hydrometallurgical recovery where metals are extracted and purified for reuse. Provides accurate modulating control needed to recover lithium, cobalt and nickel from end of life batteries.
Performance Specs:
Size & Range: DN 6-80 (¼"-3")
Pressure: 0-40 bar
Temperature: -40 to 185°C
Flow: Kv up to 148 m³/h (DN 80)
Configurations: Angle seat or straight seat body
Flow Characteristics: Linear or equal-percentage modified
Materials:
Body: 1.4408/1.4435 investment casting, EN-GJS-400-18-LT, or 1.4435 forged
Seat seal: PTFE (USP Class VI available)
Actuator: Stainless steel (1.4308/1.4301)
Actuation:
Pneumatic: NC/NO/DA with actuator sizes 0-6
Control pressure: 4-8 bar
Compatible with GEMÜ 44A0 positioner for precise control
Key Benefits:
Handles aggressive chemicals and viscous media
Self-adjusting spindle seal for low-maintenance operation
Replaceable sealing components
Vacuum capable (10 mbar absolute)
FDA and EC 1935/2004 compliant
Suitable for oxygen service with BAM approval
