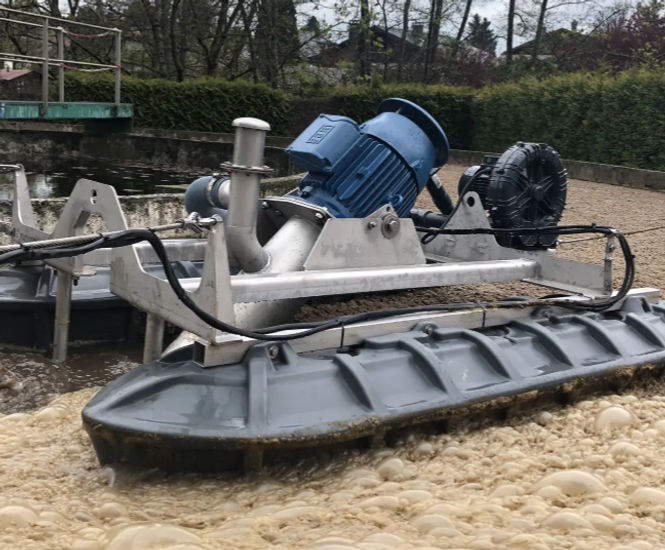

Aquaeromix inclined shaft aerator is designed for mixing and directional flow of oxygen into wastewater in lagoons and equalisation basins. Self-aspirating impeller and hollow shaft draw air below the water surface, producing fine to medium bubbles. Surface-mounted unit with direct drive motor, made from AISI 304/316 or special stainless steel. Power range 5.5–22kW.

  • Inclined shaft aerator for wastewater mixing and aeration

  • Self-aspirating or blower-assisted versions

  • Floating or fixed installation options

  • Non-clogging impeller with protective housing

  • Minimal maintenance with greased-for-life motors and few moving parts

  • Polyethylene floats filled with PUR foam for reliability

  • Easy installation and removal without interrupting treatment

Applications

  • Industrial and municipal wastewater lagoons and equalisation basins

Dimensions

  • Power range 5.5–22kW

Materials

  • Made from AISI 304/316 or special stainless steel

  • Floats made from polyethylene filled with PUR foam

Performance

  • Motor IP56 protection rating

  • Minimal vibration due to fully balanced impeller

Installation

  • Surface-mounted on floats, wall, or bridge

  • Can operate in fixed or variable water levels

  • Installation possible in full basin without process interruption

Options and variations

  • Self-aspirating or blower-assisted types

  • Floating or fixed execution

  • Housing-mounted vortex shield

Maintenance

  • Minimal maintenance required

  • No mechanical seal and few moving parts
