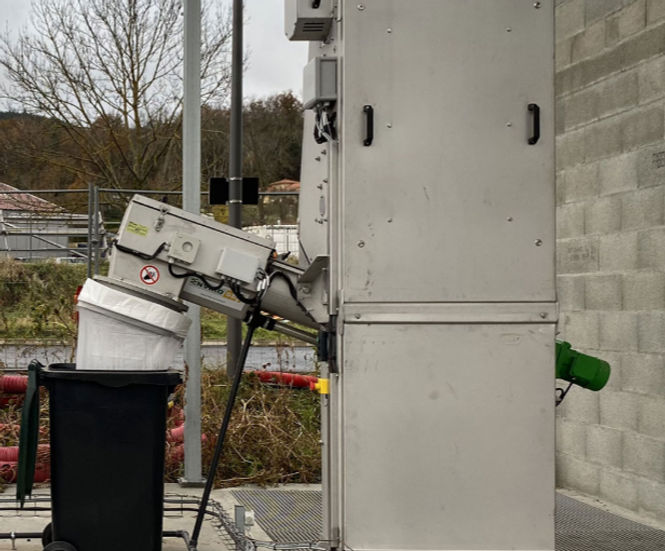

EnviroBar vertical bar screens are made for installation in channels or pumping stations to separate solid waste from effluent. Screens use fixed vertical bars with spacing from 6mm to 60mm and can include an integrated screw compactor for dewatering. Discharge height reaches up to 10m and channel widths up to 1.75m. Made from stainless steel 304L or 316L.

  • Vertical bar screen for fine or coarse screening in water treatment

  • Bar spacing options from 6mm to 60mm

  • Discharge height up to 10m

  • Integrated compactor and bagging unit available

  • Hydraulic flow rates up to 20,000m3/h

  • Simple strap-driven rake mechanism for waste removal

  • Suitable for low and high flow rates

Applications

  • Pumping stations

  • Open channels in water and wastewater treatment

Dimensions

BRS 500

Discharge height max 10,000mm

Total height max 11,150mm

Channel width min 500mm

Screen width 370mm

Channel hold length max with compactor 5,580mm

BRS 750

Discharge height max 10,000mm

Total height max 11,150mm

Channel width min 750mm

Screen width 620mm

Channel hold length max with compactor 4,300mm

BRS 1000

Discharge height max 10,000mm

Total height max 11,150mm

Channel width min 1,000mm

Screen width 860mm

Channel hold length max with compactor 3,100mm

BRS 1250

Discharge height max 10,000mm

Total height max 11,150mm

Channel width min 1,250mm

Screen width 1,110mm

Channel hold length max with compactor 1,858mm

BRS 1500

Discharge height max 10,000mm

Total height max 11,150mm

Channel width min 1,500mm

Screen width 1,360mm

Channel hold length max with compactor 6,080mm

BRS 1750

Discharge height max 10,000mm

Total height max 11,150mm

Channel width min 1,750mm

Screen width 1,610mm

Channel hold length max with compactor 3,750/800mm

Materials

Made from stainless steel 304L or 316L

Options and variations

Bar screen with integrated screw compactor and bagging unit

Performance

Hydraulic flow rates up to 20,000m3/h

Installation

Fits channels or pumping stations with lateral rubber bands for sealing
