PHC5 - fully automated compact pH correction water treatment system
pHC5 is a fully automated pH correction system designed to neutralise acidic or alkaline water. Compact system fits within a 5ft shipping container footprint and handles flow rates from 2m³/h to 20m³/h. Integrated pH probe monitors water in real time, with automatic adjustment using carbon dioxide or sodium hydroxide dosing. Includes diffuser set
Click for full image

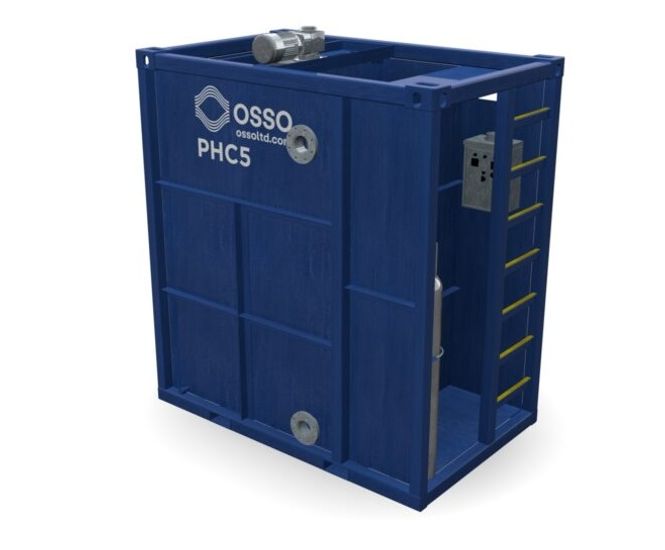

PHC5 - fully automated pH correction water treatment system
pHC5 is a fully automated pH correction system designed to neutralise acidic or alkaline water. Compact system fits within a 5ft shipping container footprint and handles flow rates from 2m³/h to 20m³/h. Integrated pH probe monitors water in real time, with automatic adjustment using carbon dioxide or sodium hydroxide dosing. Includes diffuser set and mechanical agitator for mixing. Dry weight is 1350kg.
Automated pH correction for water treatment
Compact 2.25m x 1.43m x 2.6m container footprint
Handles flow rates from 2m³/h to 20m³/h
Real-time pH monitoring and adjustment
Easy to transport and set up
Modular design allows parallel installation
Requires only chemical refill for operation
Applications
Surface water runoff
Groundwater treatment
Drilling, mining and construction
Water quality management
Dimensions
Length 2.25m
Width 1.43m
Height 2.6m
Dry weight 1350kg
Performance
Handles flow rates from 2m³/h to 20m³/h
Power supply 3phase 5KVA
Fully automated system (only requires chemical refill)
