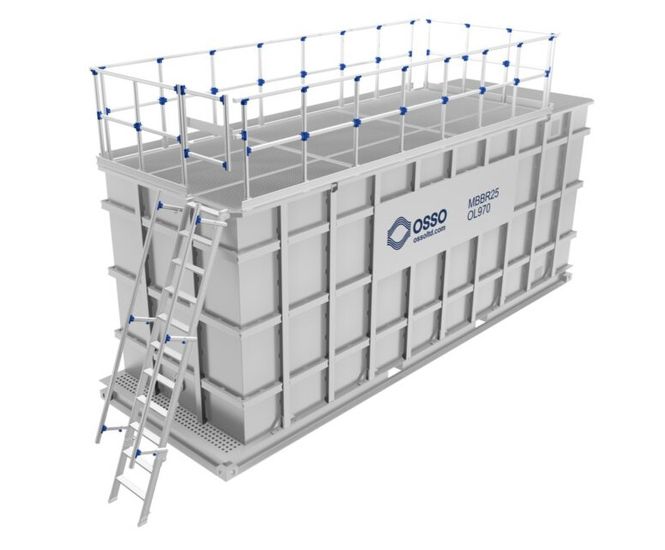

MBBR25 and MBBR18 are modular automated biological treatment systems for municipal and industrial wastewater, designed to meet strict AMP8 discharge standards. Each unit uses three aerobic chambers with 40% fill HDPU carrier media at 840m²/m³ surface area, dual perforated diffusers, and integrated automation for efficient BOD5, ammoniacal nitrogen, COD, and TPC removal in a compact footprint.

  • Modular biological wastewater treatment system with automated controls

  • Supports high-efficiency removal of BOD5, ammoniacal nitrogen, COD, and TPC

  • Three-chamber aerobic reactor with 40% fill HDPU carrier media

  • Specific surface area of 840m²/m³ for enhanced biofilm growth

  • Dual perforated diffusers and adjustable oxygen control valves in each chamber

  • Integrated process monitoring including DO sensor, antifoam dosing, and flowmeter

  • Compact design reduces installation space and complexity

Applications

  • Agricultural wastewater and high organic load effluent treatment

  • Municipal secondary biological wastewater treatment

  • Industrial wastewater treatment for food and beverage, paper, textile, and chemical sectors

Materials

HDPU carrier media

Performance

Supports high MLSS concentrations compared to conventional activated sludge systems

Installation

Compact operational footprint with reduced installation requirements
