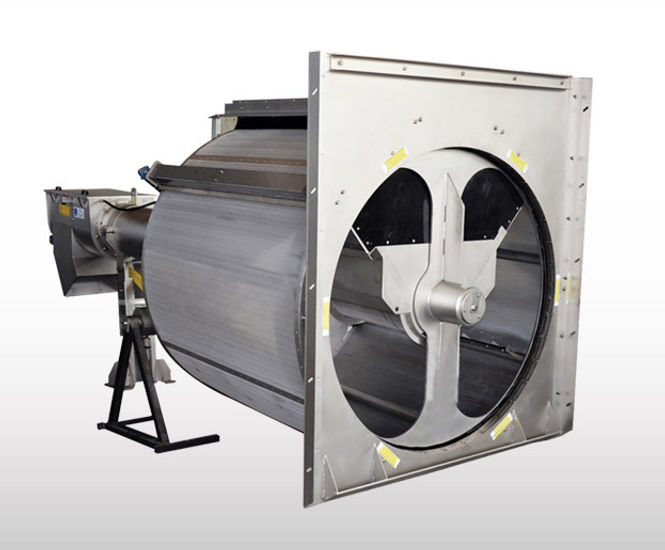

SPIRAMATIC™ VSA Fine Drum Screens are integrated mechanical screening units designed for fine screening in municipal and industrial wastewater treatment plants, as well as membrane bioreactor (MBR) pre-treatment applications. The system combines screening, washing, conveying, compacting, and dewatering of screenings in a single compact unit, eliminating the need for multiple pieces of equipment.

  • Fine drum screen for industrial water treatment and MBR plants

  • Screens, washes, conveys, compacts, and dewaters screenings in one integrated unit

  • Available in twelve standard channel widths from 600mm to 3,000mm

  • Choice of perforated plate or wedge-wire screening media

  • Fine filtration options from 0.5mm to 6.0mm

  • Triple face seal system maximises capture efficiency of fine solids

  • External spray bar continuously cleans the screen basket during operation

  • Self-cleaning screen basket and dewatering zone reduce maintenance requirements

  • Large self-lubricating bronze bushing eliminates the need for lubrication pumps

  • Durable cleaning brushes maintain optimum screening performance

  • Available in channel-mounted or tank-mounted configurations

Applications

  • Fine screening at municipal wastewater treatment plant inlets

  • Industrial wastewater screening

  • MBR membrane protection and pre-treatment

  • Screening, washing, and dewatering of wastewater screenings

  • Combined solids handling and screenings management

Materials

  • Frame: 304L or 316L stainless steel

  • Spiral screw: Special ST52 steel, 304L stainless steel, or 316L stainless steel

  • Self-lubricating bronze bushing assembly

Options and Accessories

  • In-tank installation version (up to 1,600mm width)

  • Removable sliding aluminium covers

  • Fixed stainless steel covers

  • Screenings bagging unit

  • Heating device for cold-climate operation

  • 304L or 316L stainless steel construction

  • Alternative perforated sheet and wedge-wire screening media

Dimensions

Model

Channel Width W (mm)

Channel Height H1 (mm)

Max. Admissible Water Level H2 (mm)

Discharge Height H3 (mm)

Total Height H4 (mm)

Total Length L (mm)

Installed Power (kW)

VSA 600

650

800

450

1,250

2,180

4,850

0.75

VSA 800

800

1,000

520

1,250

2,170

5,180

1.10

VSA 1000

1,000

1,200

675

1,250

2,170

5,400

1.10

VSA 1200

1,200

1,400

800

1,250

2,275

5,830

1.10

VSA 1400

1,400

1,600

930

1,250

2,275

6,030

1.50

VSA 1600

1,600

1,800

1,110

1,250

2,275

6,200

1.50

VSA 1800

1,800

2,000

1,235

1,250

2,520

6,970

2.20

VSA 2000

2,000

2,200

1,300

1,250

2,520

7,170

2.20

VSA 2200

2,200

2,400

1,500

1,250

2,530

7,350

2.20

VSA 2400

2,400

2,600

1,680

1,250

2,535

7,410

2.20

VSA 2600

2,600

2,800

1,750

2,845

7,630

7,630

3.00

VSA 3000

3,000

3,200

2,050

1,250

3,155

7,850

3.00

Installation Notes

  • Standard installation angle: 35°

  • Channel-mounted configuration as standard

  • In-tank version available for units up to 1,600mm channel width

Performance

MBR Pre-treatment Screen Media

  • 1.0mm, 1.5mm, 2.0mm, 3.0mm round holes

Standard Fine Screening Media

Perforated Plate

  • 5.0mm, 6.0mm round holes

Wedge Wire

  • 0.5mm, 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm slot opening

Typical Screenings Capture Performance

Round Hole Size (mm)

Average Screenings Capture Ratio*

1.0

92%

2.0

86%

6.0

66%

* Based on Thompson RPM Test Report Reference TRPM-REP295
