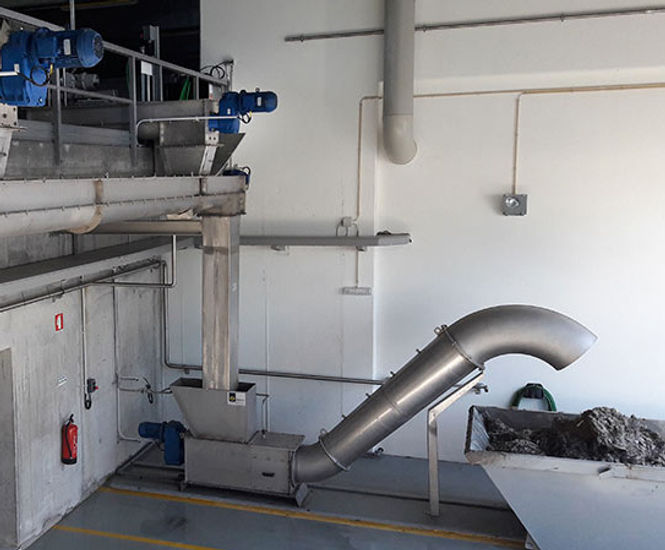

WASTECOM™ CLE is a highly efficient shafted screw compactor designed for volume reduction of effluent screenings and wet waste materials, including fibres. Ideal for municipal wastewater treatment plants as well as industrial processes. With a robust screw design, the unit handles a wide range of materials easily. The machine consists of a drainage chamber with hopper, a compacting zone, and a special flush-end pipe for discharging the compacted material.

  • Highly efficient volume reduction of screenings and wet waste

  • Durable heavy-duty shafted screw with sturdy flight design

  • Stainless steel drainage module with 3 mm slots

  • Reduction of organic and volatile pollutants

  • Significant odour lowering

  • Silent operation

  • Small footprint for easy installation

  • Cost-saving transportation and disposal due to lower volume and weight

Applications

  • Volume reduction of screenings from municipal wastewater treatment plants

  • Compaction of wet waste materials and fibres from industrial processes

Overall Dimensions

Type

A

B

C

E

Ht

Hs

G

L

Lt

N

P

W

Ø IN

Ø OUT

CLE 200

180

571

600

550

2,080

1,600

1,000

1,880

4,100

350

177

700

219

323

CLE 300

180

571

600

650

2,050

1,510

1,000

1,500

4,100

450

277

700

323

406

CLE 400

180

571

600

650

2,300

1,750

1,250

1,850

4,500

550

377

950

406

508

Dimensions in mm

Performance

Model

Solids Flow Rate up to (m³/h)

Installed Power (kW)

Hopper Capacity (l)

CLE 200

2.0

1.5

70

CLE 300

3.0

2.2

100

CLE 400

4.5

3.0

200

Options and variations

  • Custom hopper sizes and inlet/outlet connections
