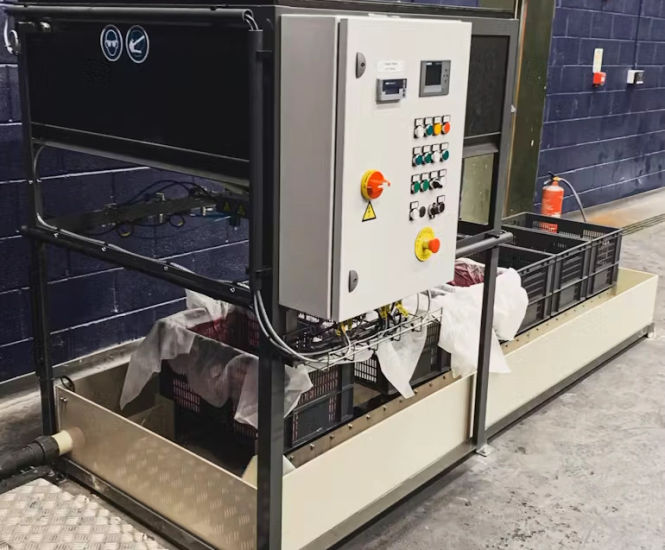

CBF Crate Filter is a compact batch wastewater treatment system for small industrial sites handling less than 4m³ per day. Designed for 350L batches, it uses PolyClay® to clarify spent solutions, emulsions, and effluent. Manual and semi-automatic versions are available. Made from high density polypropylene and powder-coated steel for durability. Simple operation with minimal space required.

  • Batch treatment system for small volume industrial wastewater

  • 350L batch size with gravity dewatering through crate filter assembly

  • Disposable filter paper lines crates for easy sludge removal

  • Semi-automatic version detects full crates and stops flow automatically

  • Compact footprint suitable for limited space installations

  • No highly skilled operators needed

  • Batch size of 350 - 500 litres

Applications

  • Small-scale industrial wastewater treatment

Dimensions

Batch size 350L

Materials

Treatment tank made from high density polypropylene

Support frame made from powder-coated steel

Options and variations

Manual and semi-automatic versions

Installation

Freestanding system with minimal space requirements
