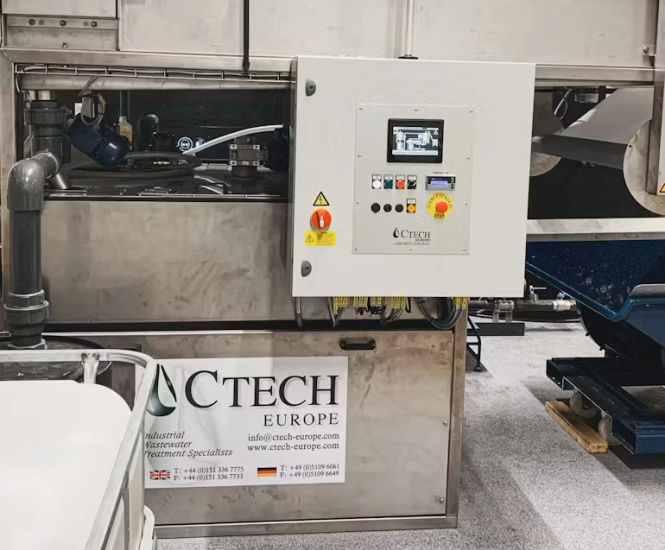

CBS Bandfilter is a batch wastewater treatment system for mid-volume industrial applications, handling 1.5m³ to 10m³ per day. Uses PolyClay technology to clarify spent solutions, emulsions, and effluent. Made from stainless steel or polyethylene with a stainless steel band filter. Models include CBS 350, CBS 750, and CBS 1500, with batch sizes from 350L to 1500L.

  • Batch system for clarifying industrial wastewater using PolyClay
  • Produces 20–35% dry solids cake
  • Easy operation with central controls and manual override
  • Manual or automated operation with PLC option
  • Conical treatment tank with integrated mixers
  • Band filter assembly for efficient sludge dewatering
  • Collection tank with gravity discharge

Applications

  • Mid-volume industrial wastewater treatment

Dimensions

CBS 350: 350L batch, 2000x700mm band filter, 350–700L/hour
CBS 750: 750L batch, 2000x1000mm band filter, 750–1500L/hour
CBS 1500: 1500L batch, 3000x1500mm band filter, 1500–3000L/hour

Materials

Stainless steel
Polyethylene (HDPE)

Performance

20–35% dry solids cake
Throughput up to 3m³/hour

Installation

Manual or automatic control panel
Centralised controls with manual override
