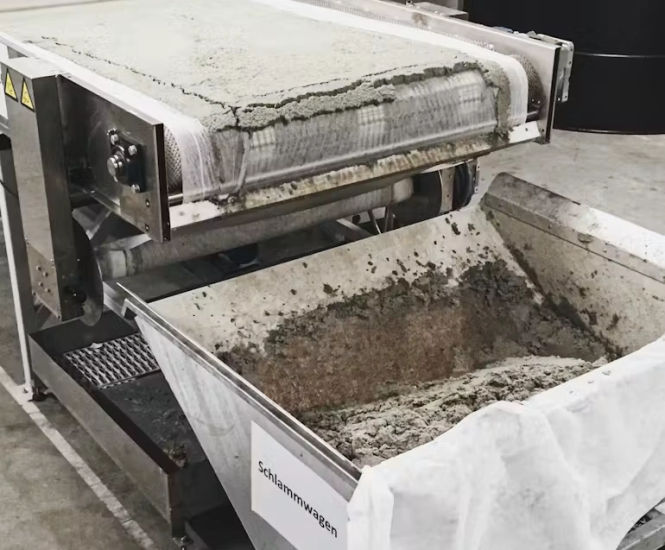

Bandfilter Dewatering Systems by CTECH Europe are automatic paper band filters for separating particles from liquids in wastewater treatment. Made from stainless steel, these units filter at 10–55 microns and handle flow rates from 40–400L/min. Standard lengths range from 1.5m to 6m and widths from 0.75m to 2m. Designed for low running costs and easy installation.

  • Automatic filtration system for particle separation in liquid waste streams
  • Made from stainless steel for durability
  • Handles flow rates from 40L/min to 400L/min
  • Filtration range of 10–55 microns
  • Free-standing design with gravity inlet connection
  • Optional level switch and paper rewinder
  • Requires minimal maintenance and low power use

Applications

  • Industrial and commercial wastewater treatment

Dimensions

Length: 1.5m to 6m

Width: 0.75m to 2m

Materials

Stainless steel

Options and variations

Optional level switch for auto indexing

Optional paper rewinder

Various grades of filter media

Performance

Filtration: 10–55 microns

Flow rate: 40L/min to 400L/min

Installation

Free-standing unit with gravity inlet and mains electrical connection

Optional collection sump with level-controlled pump-out

Maintenance

Filter paper and collection bin require occasional attention
