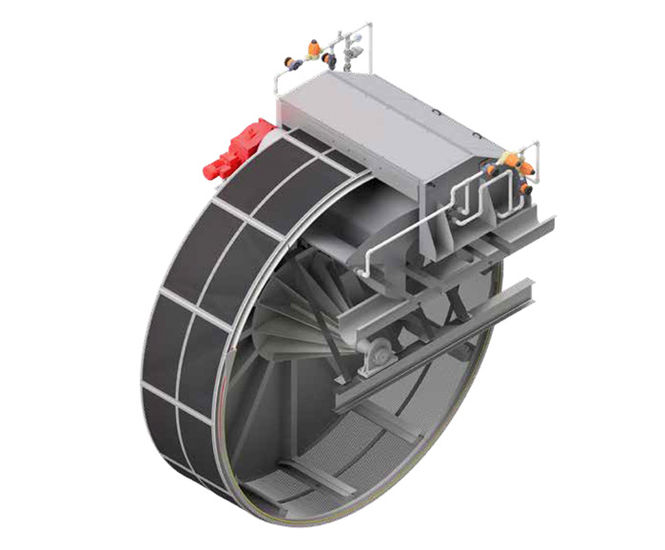

DRUMGUARD screen is designed to screen large volumes of water in applications such as power generation intakes and desalination plants. Made from perforated stainless steel or plastic panels for sewage, or woven wire mesh for water intakes. Double Entry design up to 18m diameter and 4m width, Single Entry from 1m diameter. Efficient sealing system prevents carry-over.

  • Screening system for high-volume water applications

  • Efficient sealing system prevents material carry-over

  • Double Entry design up to 18m diameter and 4m width

  • Single Entry design available from 1m diameter

  • Panels made from stainless steel, plastic, or woven wire mesh

  • Suitable for both new installations and retrofitting

Applications

  • Power generation water intakes

  • Desalination plants

  • Sewage works for fine inlet screening

  • Sea outfall screening

Dimensions

Double Entry design up to 18m diameter

Double Entry design up to 4m width

Single Entry design from 1m diameter

Materials

Perforated stainless steel

Plastic panels

Woven wire mesh

Technical details

  • Common installations at Wastewater Treatment Plants, Seawater & Pumping / Intake Stations.

  • Cup Screens from 1 m (3 ft) diameter. Drum Screens up to  18 m (60 ft) diameter.

  • Able to screen large volumes of water

  • Perforated panels in stainless steel or Ultra-high-molecular-weight polyethylene (UHMWPE) depending on application

  • Screening size = 2mm to 6mm.

  • Material of construction, carbon steel painted as standard or stainless steel.

  • Options: Single, dual or variable speed drive (3 & 6m/min peripheral speed) ATEX certified if required for use in hazardous areas. Rotary cleaning brush option for enhanced panel cleaning on sewage applications.

  • A fish-friendly version is also available.

Product benefits

  • Simple and robust design to screen large volumes of water

  • Efficient sealing system – no carry-over

  • Double Entry design up to 18m (60 ft) diameter and widths up to 4m (13ft).

  • Single Entry design, from 1m diameter
