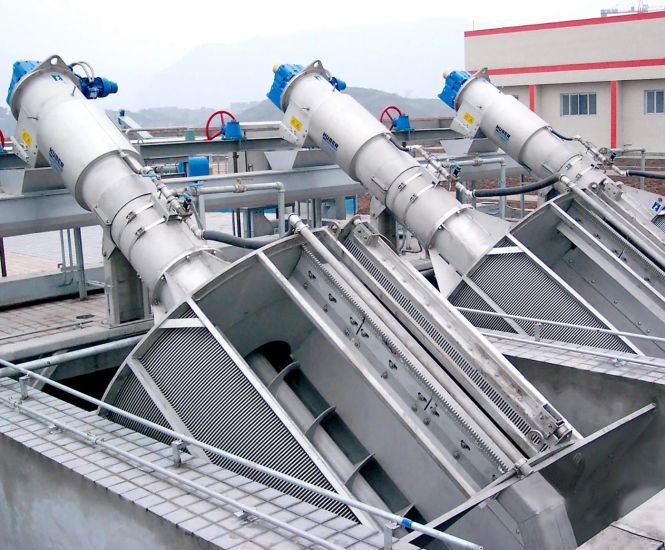

HUBER Fine Screen ROTAMAT® Ro1 is a stainless steel mechanical screen for solids separation in wastewater, combining screening, washing, transport, compaction, and dewatering in one compact unit. Screen basket diameters up to 3000mm and bar spacings of 6mm or 10mm allow throughput to be tailored to site needs. Designed for channel or tank installation at a 35° angle.

  • Mechanical screen for solids separation, washing, transport, compaction, and dewatering in one unit
  • Low headloss and high separation efficiency due to large screen area and 35° installation
  • Made from stainless steel and acid pickled for corrosion resistance and reduced maintenance
  • Self-cleansing operation with full engagement rake tines and single flow path
  • Outdoor installation possible with frost protection and insulation
  • Retrofittable with heating or integrated screenings washing system
  • No lubrication required; routine checks and visual inspections are sufficient

Applications

  • Municipal and industrial wastewater treatment plants for mechanical solids separation

Dimensions

Screen basket diameter up to 3000mm

Screen bar spacing 6mm or 10mm

Materials

Made from stainless steel

Finish

Acid pickled

Installation

Channel or tank-mounted at 35° inclination

Maintenance

No lubrication required; routine checks and visual inspections
