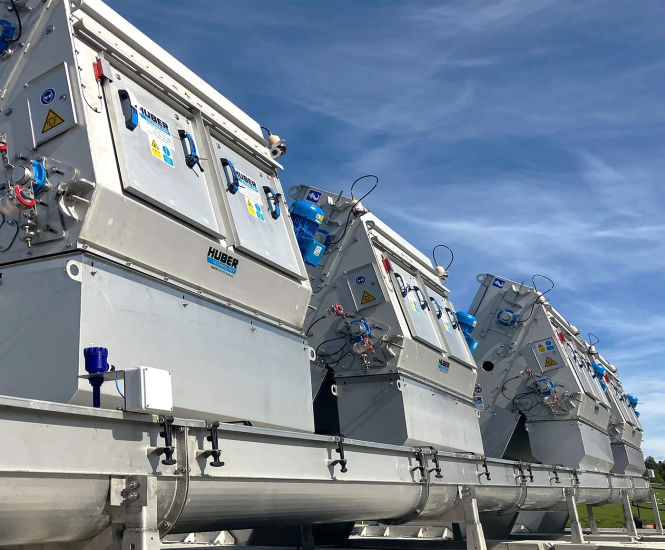

HUBER Belt Screen EscaMax® is a compact inlet screen for municipal and industrial wastewater treatment, designed for deep channels with high water levels. Achieves 84% separation efficiency using perforated plate screening elements and a self-cleaning system with an internal spray bar and counter-rotating brush. Made from stainless steel with wear-resistant ceramic bearings and fully enclosed for odour control.

  • Inlet screen for wastewater treatment in deep channels
  • Perforated plates achieve high separation efficiency
  • Self-cleaning with internal spray bar and roller brush
  • Compact design with low installation height
  • Fully enclosed for odour-free operation
  • Easy to retrofit into existing channels
  • All wetted parts made from stainless steel
  • Wear-resistant ceramic submerged bearings

Applications

  • Municipal and industrial wastewater inlet screening

Dimensions

Not specified

Materials

Stainless steel (all parts in contact with medium except chains, drives, bearings)

Ceramic (submerged bearings)

Finish

Acid treated in a pickling bath

Options and variations

Chains and chain wheels available in stainless steel

Performance

Separation efficiency: 84%

Not hindered by gravel or grit

Installation

Easy to retrofit into existing channels

No channel recesses required

Self-supporting folded stainless steel profile for easy removal

Maintenance

Simple chain tensioning unit

Easy-to-remove covers for access
