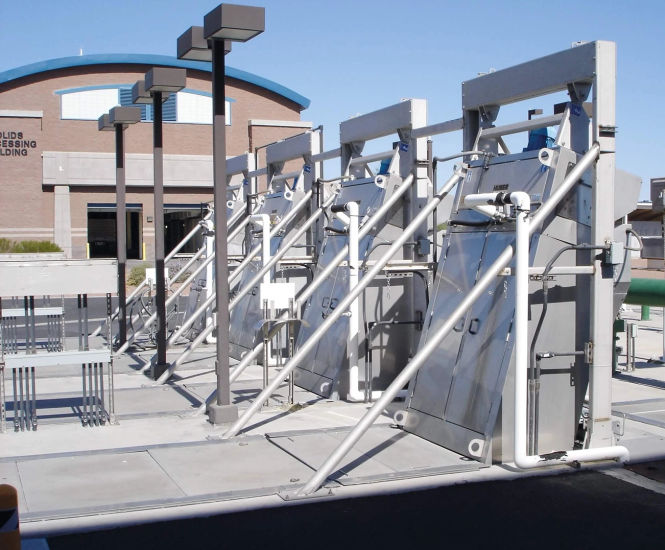

HUBER Fine Screen STEP SCREEN® SSV is a screening system for wastewater treatment, designed for steep installation angles of 70°–80°. Made from stainless steel and acid-treated for corrosion protection. Handles high flow rates and large discharge heights in deep channels. Self-cleaning with movable lamellas and no need for spray water or brushes. Available in multiple slot widths and sizes.

  • Screening system for removing solids from wastewater in deep channels
  • Steep installation angle saves space and suits high discharge heights
  • Self-cleaning design with counter-current principle reduces maintenance
  • High separation efficiency due to narrow slot widths and screenings carpet
  • Reduced susceptibility to grit, gravel, and stones
  • Pivots in place for easy access without removing downstream equipment
  • Made from stainless steel and acid-treated for corrosion resistance

Applications

  • Municipal and industrial wastewater treatment plants requiring mechanical pre-treatment

Dimensions

L=5300mm, W=1376mm, slot width 6mm, installation angle 75°

L=4300mm, W=1176mm, slot width 3mm, installation angle 70°–80°

L=4300mm, W=1676mm, slot width 6mm

Materials

Stainless steel

Finish

Acid-treated in a pickling bath

Options and variations

Slot widths: 3mm, 6mm

Lengths: 4300mm, 5300mm

Widths: 1176mm, 1376mm, 1676mm

Installation angle: 70°–80°

Performance

High flow rate capacity

Very high separation efficiency

Self-cleaning without spray water or brushes

Reduced susceptibility to grit, gravel, and stones

Installation

Steep installation angle for space-saving and deep channels

Pivots in place for maintenance access

Maintenance

Self-cleaning with movable lamellas
