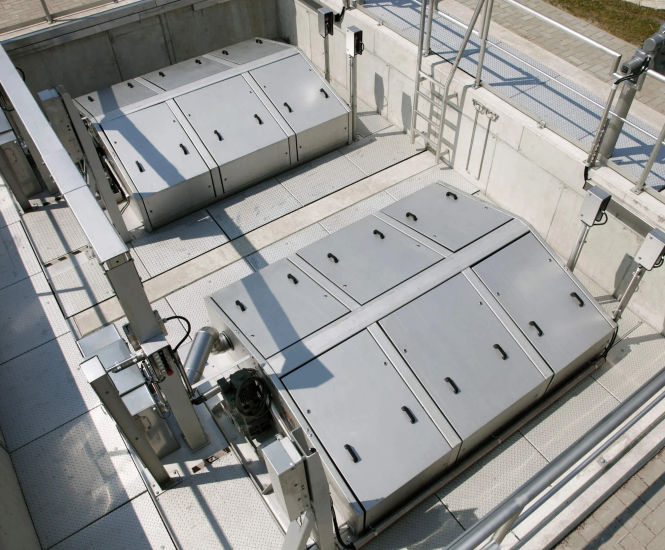

HUBER Disc Filter RoDisc® is a micro screen filtration system designed to remove fine suspended solids from water and wastewater. Uses up to 35 vertical discs with mesh sizes as small as 10µm. Operates as a gravity-flow system with up to 65% of disc surface submerged during use. Mesh is thermally fixed and segments are individually replaceable.

  • Micro screen filtration system for fine solids removal from water and wastewater
  • High hydraulic throughput on a small footprint
  • Gravity system with low headloss, no need to lift wastewater
  • Continuous operation during cleaning cycles
  • No external water supply needed for backwashing, uses filtrate
  • Individual filter segments can be replaced without lifting equipment
  • Reduces filterable solids, COD, BOD, and phosphorus
  • Can be installed in stainless steel or concrete tanks

Applications

  • Filtration of biologically treated wastewater in municipal and industrial plants
  • Pre-filtration for UV disinfection or membrane filtration systems
  • Process and service water treatment in industry
  • Drinking water recovery from surface waters
  • Removal of microplastics and helminth eggs
  • Technical road runoff treatment

Dimensions

Up to 35 vertical discs per unit

Each disc made of 12 plastic segments

Mesh size as small as 10µm

Up to 65% of disc surface submerged during operation

Materials

Plastic filter segments with mesh fixed by thermal process

Performance

Continuous filtration during cleaning

High hydraulic capacity

Reduces phosphorus, COD, BOD, and filterable solids

Installation

For installation in stainless steel or concrete tanks

Gravity-flow operation

Maintenance

Filter surfaces cleaned by spray nozzle bar using filtrate

Occasional chemical cleaning for biofouling or inorganic residues

Individual segment replacement possible
