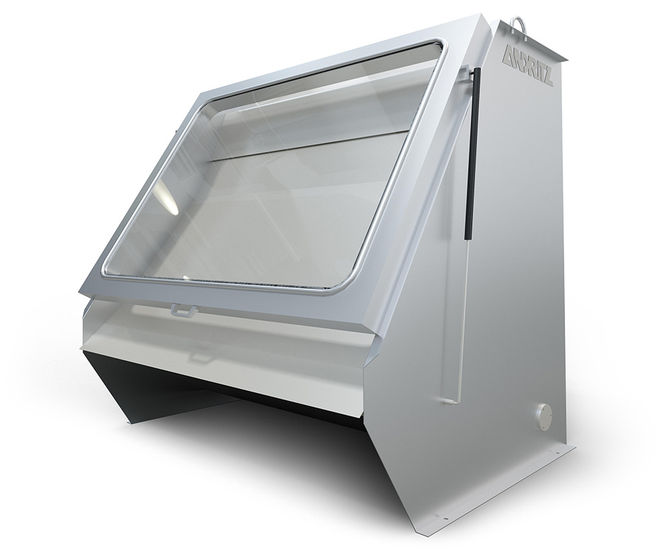

HydraSieve is a static screen made for solid/liquid separation in municipal, industrial, and food processing settings. Uses a wave-shaped screen plate with triangular bars and no moving parts. Operates quietly and only needs periodic cleaning. Available in 24", 48", and 72" models with slot openings from 0.25mm to 1.5mm.

  • Static screen for separating solids from liquids in various effluents
  • No moving parts or motor, reducing installation and maintenance needs
  • Wave-shaped bars create a self-cleaning effect
  • Quiet operation suitable for sensitive environments
  • Periodic cleaning is the only maintenance required
  • Handles flows up to 230m3/hr depending on model and slot size

Applications

  • Domestic sewage and storm water screening
  • Industrial intake water and wash water from sand filters
  • Food processing, including canning, breweries, and dairies
  • Slaughterhouse and fish processing effluent
  • Pig manure and textiles/laundry wastewater

Options and variations

Available in 24", 48", and 72" screen widths

Slot openings: 0.25mm, 0.5mm, 0.75mm, 1mm, 1.5mm

Performance

Flow capacity ranges from 40m3/hr to 230m3/hr depending on model and slot size

Maintenance

Requires only periodic cleaning
