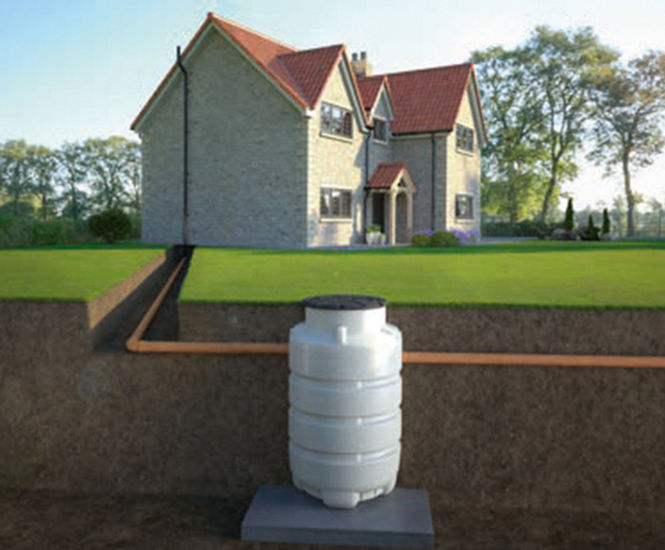

QUANTUM low cost sewage treatment plant is a compact domestic wastewater system made in the UK, designed for small properties. Uses an advanced activated sludge process to treat sewage and discharge clear effluent. Achieves up to 97.3% pollutant reduction and ammonia levels down to 1.8mg/L. Available in three models: QUANTUM 6, QUANTUM 8, and QUANTUM 10.

  • Compact domestic sewage treatment plant for small sites

  • Ultra-compact tank with minimal visual impact

  • Automatic floating sludge return reduces manual maintenance

  • Quiet, odourless operation with no above-ground blower kiosk

  • Manual air flow adjustment for efficient performance at low occupancy

  • Recycles its own waste, reducing sludge removal frequency

  • Accepted by the Environment Agency for discharge without a permit if compliant

  • 20 year tank warranty

Applications

Domestic houses requiring small sewage treatment plants

Dimensions

QUANTUM 6: diameter 1.215m, height 2.000m/2.450m, inlet invert 0.550m/1.000m, outlet invert 0.600m/1.050m

QUANTUM 8: diameter 1.500m, height 2.000m/2.450m, inlet invert 0.550m/1.000m, outlet invert 0.600m/1.050m

QUANTUM 10: diameter 1.500m, height 2.000m/2.450m, inlet invert 0.550m/1.000m, outlet invert 0.600m/1.050m

Performance

Pollutant reduction up to 97.3%

Ammonia reduction down to 1.8mg/L

Phosphorous reduction to 2.9mg/L

Installation

Simple, low-cost installation with one-piece tank construction

Optional turret extensions for deeper inlets

Internal pump station available for sites needing pumped outlet

Manufacture

Made in UK

Product accreditations

CE certified

Tested to EN12566-3

Warranty

20 year tank warranty

Maintenance

Simple, low-cost maintenance with reduced sludge removal frequency

Performance

QUANTUM has been designed to meet the UK Royal Commission standard for effluent.

Pollutant

Design Effluent Quality
(95%Ile Basis)

Average Effluent Quality
During EN 12566-3 Testing
– 100% Loading

Average Effluent Quality
During EN 12566-3 Testing
– 10% Loading

COD

N/A

55 mg/L

N/A

BOD5

20 mg/L

9 mg/L

4 mg/L

Suspended Solids

30 mg/L

17 mg/L

14.4 mg/L

Ammonia (NH4-N)

20 mg/L

1.8 mg/L

0.3 mg/L
