VORTEX Sewage Treatment Plant is an adjustable, eco-electric system for domestic and small commercial wastewater treatment. Designed for populations from 4 to 50 people, it uses a hand-turn valve to match varying occupancy. Achieves up to 98.9% pollutant reduction and operates at only 30W per hour. Approved by the Environment Agency and British Water Certified.

  • Adjustable sewage treatment plant for homes and small offices
  • Hand-turn valve allows easy adjustment for changing occupancy
  • Low energy use at 30W per hour, running 45 minutes each hour
  • One-piece tank made from non-corroding materials with 20 year warranty
  • Automatic sludge management reduces maintenance and emptying frequency
  • Odourless operation with no primary settlement tank
  • Compact size for installation in tight spaces
  • Internal pumped outlet option for sites needing uphill discharge

Applications

  • Domestic houses and small commercial buildings with variable occupancy

Options and variations

Available in 4, 6, 8, 12, 15, 20, 30, 40, and 50 person sizes

Performance

Pollutant reduction up to 98.9%

Ammonia reduction down to 0.3mg/L

Phosphorous reduction to 2.9mg/L

Electricity consumption from 30W per hour

Operates 45 minutes per hour for energy saving

Installation

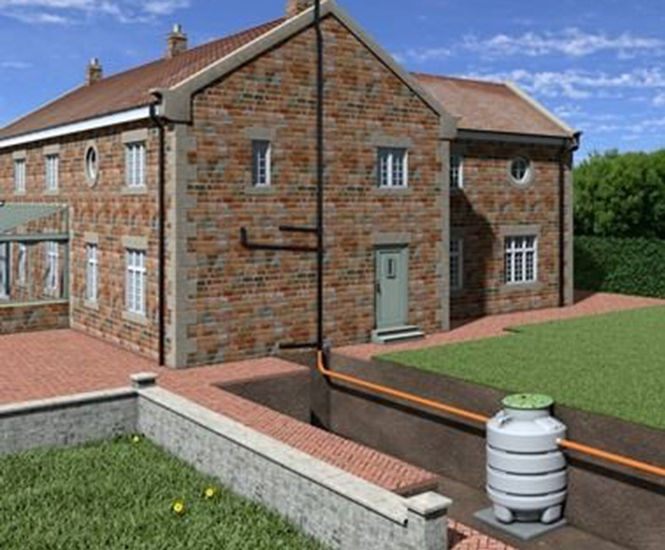

Compact one-piece tank for economic installation in restricted spaces

Versatile inlet depths from 550mm to 1,500mm

Product accreditations

Environment Agency approved

British Water Certified

EN 12566-3:2005 compliant

Warranty

20 year tank warranty

Maintenance

Automatic sludge return system reduces manual intervention and servicing costs
