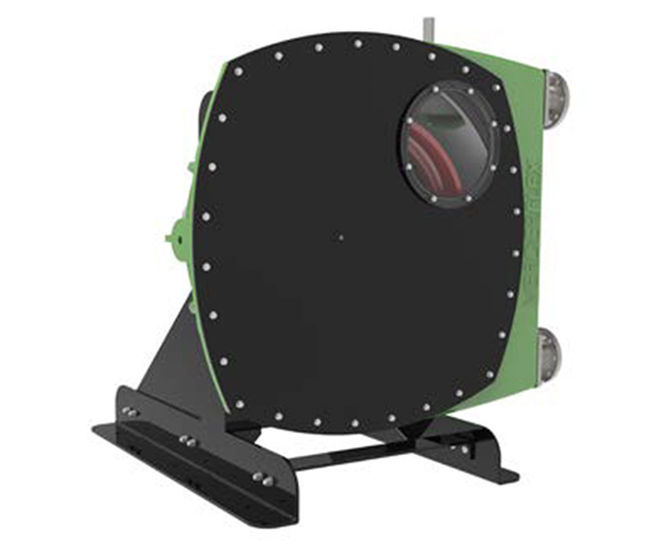

The Verderflex VF 125 industrial hose pump is a proven high flow, high pressure, heavy duty abrasion resistant peristaltic pump. Capable to pump high solid content (up to 80%) and high density (specific gravity), reducing water usage and improving process efficiencies.

These field proven VF pump offers a reliable solution in difficult pumping situations worldwide. Replacement VF hoses typically cost just around 10% of the initial pump price - the long life hose is rapidly replaced in situe without removing the pump to a workshop, saving time, money and frustration.

Features of the Verderflex VF 125 hose pump

  • Flow rates up to 90 m3/h

  • Rigid pump housing design for heat dissipation and strength

  • Fit-in hoses; no adjustment needed, quick return to service time

  • Minimise maintenance costs 100% volumetric flow

  • The accurate and 100% volumetric flow reduce operational cost

  • Lower installed power over competing technologies

Technical details

 Description

Material

Paint Detail

Pump Housing

Cast Iron (GG25)

Green Powder Coated

Front Cover

Carbon Steel with Perspex Inspection Window

Powder Coated

Rotor

Cast Iron (GG25)

Rotor Shoes

Aluminium (6082T6)

Port Flange

Carbon Steel sheradised screw-on flange in accordance with either

DIN PN16 DN125 or ANSI 150# 5“ or JIS10K 125mm

Inserts

Stainless Steel (316L)

Options: Polypropylene, PVDF Inserts*

Mounting Frame

Carbon Steel

Powder Coated

Lubricant

Verderlube - Glycerine based compound**

Verdersil - Silicone oil***

Hose

Natural Rubber (NR)

Options: Nitrile Buna Rubber (NBR) Ethylene Propylene Diene Monomer (EPDM), and Hypalon® (CSM)
