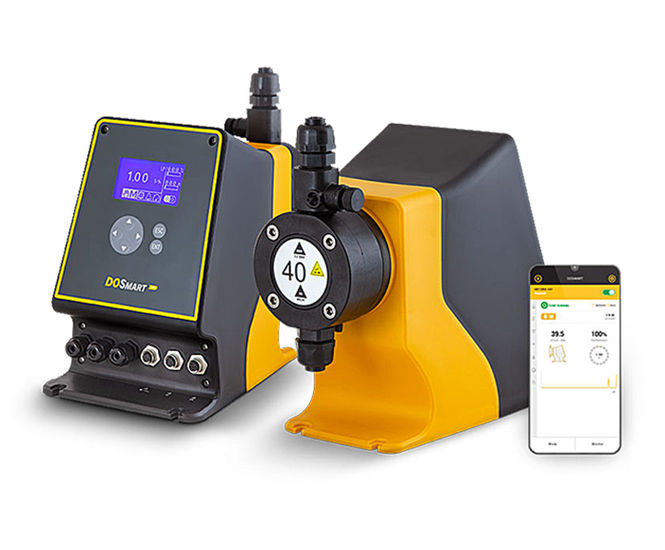

DOSmart - stepper motor meter pumps for precise liquid control

DOSmart is a range of stepper motor metering pumps designed for precise and automated dosing of liquid chemicals. Each model delivers up to 60l/h at a maximum pressure of 16bar. Pumphead options include PP, PVDF, and AISI316. Drive power is 32W. Maximum operating temperature is 45°C. Weight is 4.5kg per unit.

• Stepper motor metering pump for accurate chemical dosing

• Three models: DOSmart AC, DOSmart AC 24Vdc, DOSmart BC

• Flow rate up to 60l/h and pressure up to 16bar

• Advanced control functions for automated operation

• Pumphead made from PP, PVDF, or AISI316

• Compact design with 4.5kg weight

• Suitable for integration into automated systems

Applications

• Automated dosing of liquid chemicals in industrial and process environments

Dimensions

Max. flow 60l/h

Max. discharge pressure 16bar

Max. drive power 32W

Weight 4.5kg

Max. temperature 45°C

Materials

PP

PVDF

AISI316

Options and variations

Dosmart AC

Dosmart AC is characterized by high precision, extensive regulation (1:3000) and high suction capacity even with viscous products. It allows the dosing of any commonly used chemical in the water treatment, chemical, food and agriculture industries.

Dosmart AC Properties

DOSmart AC 24Vdc

Dosmart AC 24Vdc is characterized by high precision, extensive regulation (1:3000) and high suction capacity even with viscous products. It allows the dosing of any commonly used chemical in the water treatment, chemical, food and agriculture industries.

DOSmart AC 24Vdc Properties

DOSmart BC

Dosmart BC represents the latest in metering pump innovation, designed with a special focus on improving efficiency in the agricultural sector. Equipped with stepper motor technology, this state-of-the-art pump has been meticulously designed to meet the high standards of pH control and disinfection required by farmers in the care of their crops.

DOSmart BC Properties
