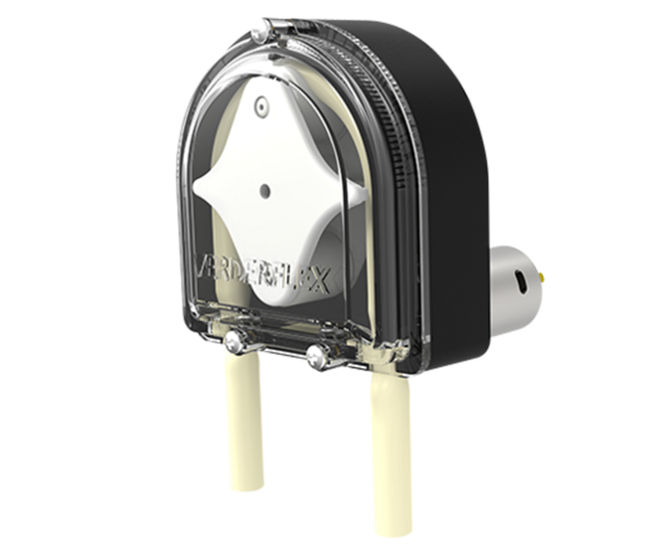

M1500 - peristaltic dosing pump for viscous fluids and water sampling
Microdos M1500 is a pump designed for chemical dosing and water sampling, capable of handling viscous fluids. Maximum flow rate is 2200ml/min and maximum discharge pressure is 2bar. Operates up to 85°C. Made from thick wall tubing with a black cycoloy pump head and a 2-roller nylon rotor. Tubing options include Verderprene, Silicone, Viton®, or
12/24V D.C. 30W, robust motor 100W or 110/220/240V 50/60Hz 290W
Microdos M1500 is a pump designed for chemical dosing and water sampling, capable of handling viscous fluids. Maximum flow rate is 2200ml/min and maximum discharge pressure is 2bar. Operates up to 85°C. Made from thick wall tubing with a black cycoloy pump head and a 2-roller nylon rotor. Tubing options include Verderprene, Silicone, Viton®, or Tygon®.
Pump for dosing chemicals and sampling water
Handles viscous fluids with thick wall tubing
Maximum flow rate of 2200ml/min
Maximum discharge pressure of 2bar
Operates at temperatures up to 85°C
2-roller design for smooth operation
Multiple tubing material options
Applications
Chemical dosing
Water sampling
Properties
Max. flow
2200 ml/min
Max. discharge pressure
2 bar
Max. temperature
85 °C
Tubing material
Verderprene, Silicone, Viton® or Tygon®
Options
Forced fan (only 110/230V, 50/60Hz)
Pump Head
Black cycoloy with support bearing
Rotor
2-roller design, Nylon 6, with Acetal polymer rollers
Materials
Pump head made from black cycoloy with support bearing
Rotor made from Nylon 6 with Acetal polymer rollers
Tubing made from Verderprene, Silicone, Viton®, or Tygon®
